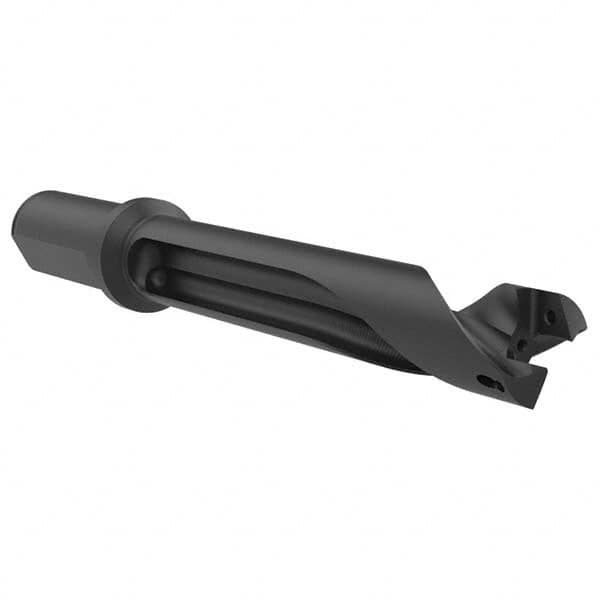

Indexable Spade Drill: 0.9449 to 1.0235″ Dia, 5-1/8″ Max Depth, Straight Flute 1″ Shank Dia, Cylindrical Shank, 6-17/32″ Body Length, 8-13/16″ OAL, Through Coolant
Item #: 46800231
Brand: Allied Machine and Engineering
Model #: ST05240-100F
Product Specifications
| Minimum Drill Diameter (Decimal Inch) | 0.9449 |
| Maximum Drill Diameter (Decimal Inch) | 1.0235 |
| Maximum Drill Depth (Inch) | 5-1/8 |
| Shank Type | Cylindrical |
| Shank Diameter (Inch) | 1 |
| Drill Depth by Diameter Ratio | 5xD |
| Tool Material | Steel |
| Overall Length (Inch) | 8-13/16 |
| Flute Type | Straight |
| Body Length | 6-17/32 |
| Shank Length (Inch) | 2-9/32 |
| Coolant Hole Thread Size | 1/8 |
| Coolant Hole Thread Type | NPT |
| Coolant Through | Yes |
