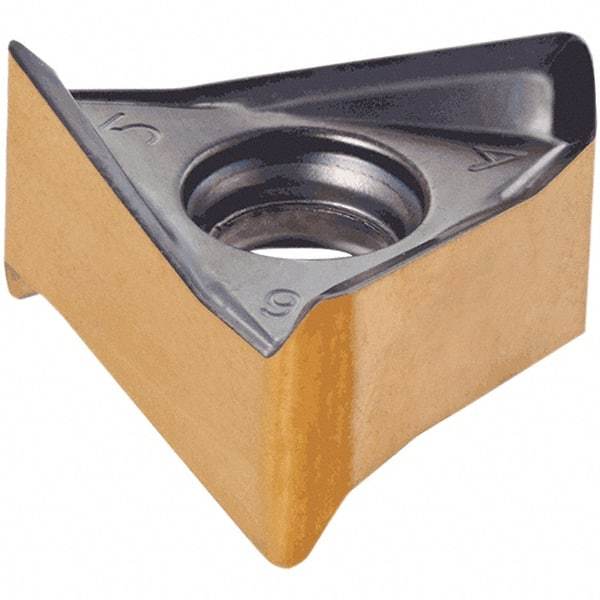

Iscar - H690 TNKX100504 PNTR Grade IC830 Carbide Milling Insert - TiAlN/AlTiN/TiN Finish, 4.7mm Thick, 6.2mm Inscribed Circle, 0.4mm Corner Radius
Item #: 46675054
Brand: Iscar
Model #: 5607748
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | H690 TNKX |
| Insert Size | 100504 |
| Material | Carbide |
| Manufacturer's Grade | IC830 |
| Coating | TiAlN/AlTiN/TiN |
| Length (mm) | 8.48 |
| Length (Decimal Inch) | 0.3340 |
| Inscribed Circle (mm) | 6.20 |
| Inscribed Circle (Decimal Inch) | 0.2440 |
| Thickness (mm) | 4.70 |
| Thickness (Decimal Inch) | 0.1850 |
| Corner Radius (Decimal Inch) | 0.0160 |
| Corner Radius (mm) | 0.40 |
| Coating Process | PVD |
| Shape | Triangle |
| Chipbreaker | PNTR |
| Maximum Depth of Cut (mm) | 8.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.3150 |
| Cutting Edge Style | Helical |
| Manufacturers Catalog Number | H690 TNKX 100504PNTR |
| ISO Number | H690 TNKX 100504PNTR |
| ANSI Number | H690 TNKX 100504PNTR |
