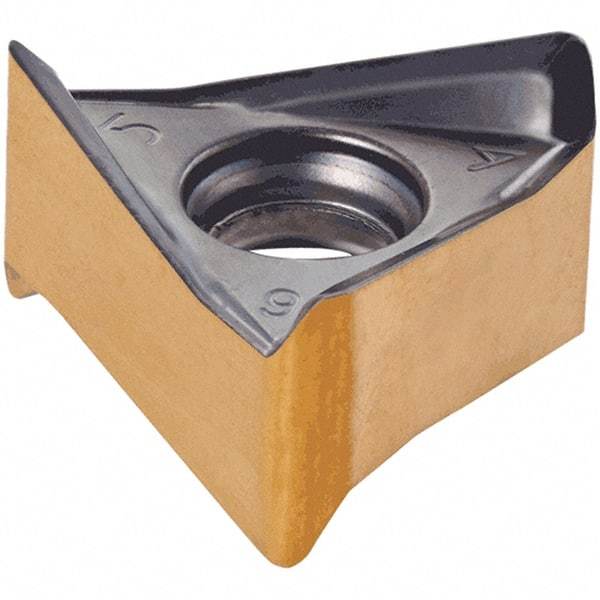

Iscar - H690 TNKX160610 PNTR Grade IC845 Carbide Milling Insert - AlTiN Finish, 10mm Thick, 12mm Inscribed Circle, 1mm Corner Radius
Item #: 46673257
Brand: Iscar
Model #: 5668390
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | H690 TNKX |
| Insert Size | 160610 |
| Material | Carbide |
| Manufacturer's Grade | IC845 |
| Coating | AlTiN |
| Length (mm) | 17.50 |
| Length (Decimal Inch) | 0.6890 |
| Inscribed Circle (mm) | 12.00 |
| Inscribed Circle (Decimal Inch) | 0.4720 |
| Thickness (mm) | 10.00 |
| Thickness (Decimal Inch) | 0.3940 |
| Corner Radius (Decimal Inch) | 0.0390 |
| Corner Radius (mm) | 1.00 |
| Coating Process | PVD |
| Shape | Triangle |
| Chipbreaker | PNTR |
| Maximum Depth of Cut (mm) | 13.50 |
| Maximum Depth of Cut (Decimal Inch) | 0.5310 |
| Cutting Edge Style | Helical |
| Manufacturers Catalog Number | H690 TNKX 160610PNTR |
| ISO Number | H690 TNKX 160610PNTR |
| ANSI Number | H690 TNKX 160610PNTR |
