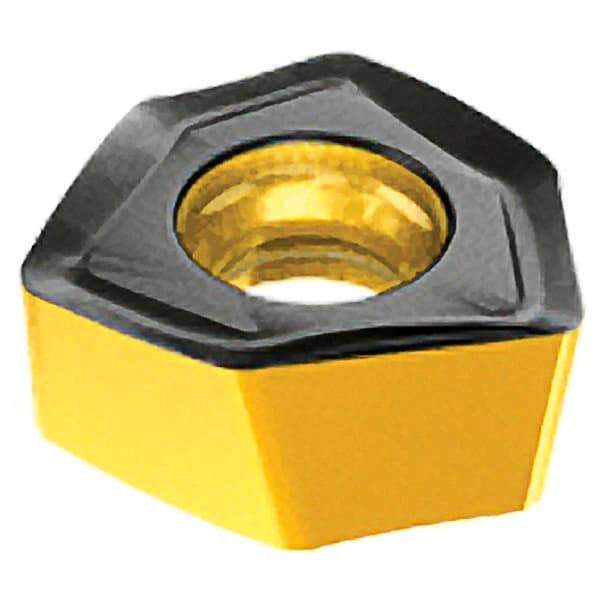

Iscar - H600 WXCU070515 HP Grade IC882 Carbide Milling Insert - TiAlN/TiN Finish, 5.9mm Thick, 11.14mm Inscribed Circle, 1.5mm Corner Radius
Item #: 46654158
Brand: Iscar
Model #: 3309414
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | H600 WXCU |
| Insert Size | 070515 |
| Material | Carbide |
| Manufacturer's Grade | IC882 |
| Coating | TiAlN/TiN |
| Length (mm) | 7.16 |
| Length (Decimal Inch) | 0.2820 |
| Inscribed Circle (mm) | 11.14 |
| Inscribed Circle (Decimal Inch) | 0.4390 |
| Thickness (mm) | 5.90 |
| Thickness (Decimal Inch) | 0.2820 |
| Corner Radius (Decimal Inch) | 0.0590 |
| Corner Radius (mm) | 1.50 |
| Coating Process | PVD |
| Shape | Hexagon |
| Chipbreaker | HP |
| Manufacturers Catalog Number | H600 WXCU 070515HP |
| ISO Number | H600 WXCU 070515HP |
| ANSI Number | H600 WXCU 070515HP |
