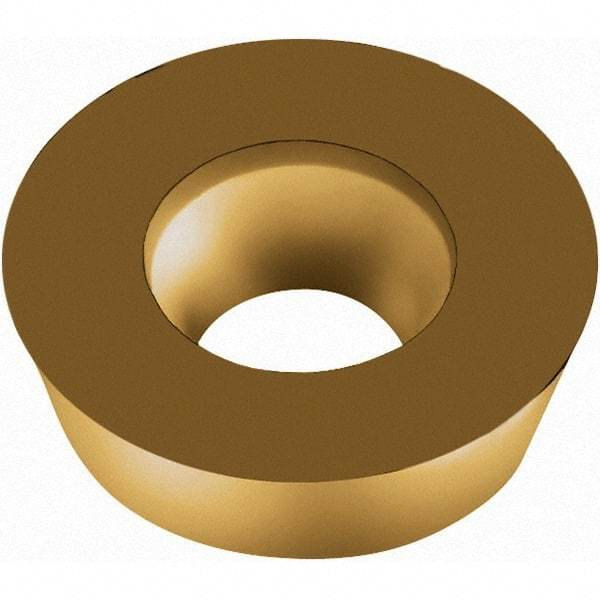

Walter - RDHX1003M0 A27 Grade WKP35G Carbide Milling Insert - TiAlN/TiN Finish, 1/8" Thick, 10mm Inscribed Circle, 5mm Corner Radius
Item #: 46626792
Brand: Walter
Model #: 7347343
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | RDHX |
| Insert Size | 1003M0 |
| Material | Carbide |
| Material Grade | K35/P35/K35 |
| Manufacturer's Grade | WKP35G |
| Coating | TiAlN/TiN |
| Inscribed Circle (mm) | 10.00 |
| Thickness (Inch) | 1/8 |
| Corner Radius (mm) | 5.00 |
| Hole Diameter (mm) | 4.40 |
| Relief Angle | 15.000 |
| Rake | Positive |
| Coating Process | CVD |
| Shape | Round |
| Insert Hand | Neutral |
| Chipbreaker | A27 |
| Manufacturers Catalog Number | RDHX1003M0T-A27 WKP35G |
