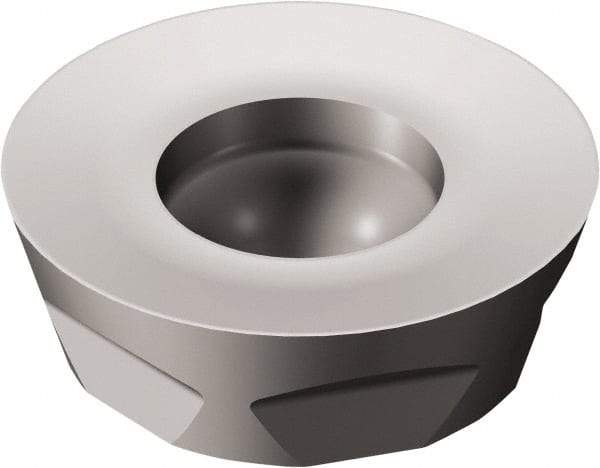

Sandvik Coromant - R3001648 PH Grade 1130 Carbide Milling Insert - AlTiCrN Finish, 4.76mm Thick, 16mm Inscribed Circle, 8mm Corner Radius
Item #: 46613139
Brand: Sandvik Coromant
Model #: 7100991
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | R300 |
| Insert Size | 1648 |
| Material | Carbide |
| Manufacturer's Grade | 1130 |
| Coating | AlTiCrN |
| Inscribed Circle (mm) | 16.00 |
| Inscribed Circle (Decimal Inch) | 0.6299 |
| Thickness (mm) | 4.76 |
| Thickness (Decimal Inch) | 0.1875 |
| Corner Radius (Decimal Inch) | 0.3150 |
| Corner Radius (mm) | 8.00 |
| Primary Workpiece Material | P |
| Secondary Workpiece Material | H |
| Coating Process | PVD |
| Shape | Round |
| Insert Hand | Neutral |
| Chipbreaker | PH |
| Manufacturers Catalog Number | R300-1648M-PH 1130 |
