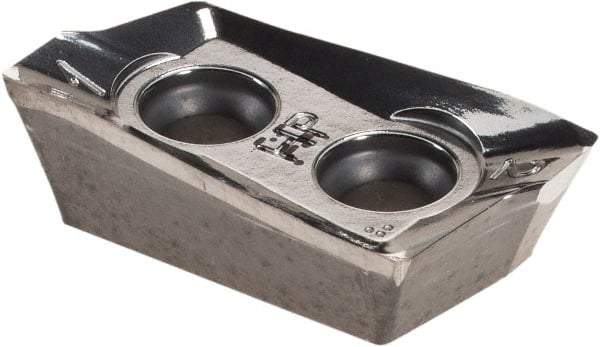

Iscar - HP ADCR220704 P Grade IC28 Carbide Milling Insert - Uncoated, 0.296" Thick, 0.4mm Corner Radius
Item #: 45396454
Brand: Iscar
Model #: 5604615
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | HP ADCR |
| Insert Size | 220704 |
| Material | Carbide |
| Manufacturer's Grade | IC28 |
| Coating | Uncoated |
| Length (Decimal Inch) | 1.0290 |
| Thickness (Decimal Inch) | 0.2960 |
| Corner Radius (Decimal Inch) | 0.0157 |
| Corner Radius (mm) | 0.40 |
| Relief Angle | 15.000 |
| Rake Angle | 27 |
| Rake | Positive |
| Included Angle | 85 |
| Shape | Parallelogram |
| Insert Hand | Right Hand |
| Chipbreaker | P |
| Maximum Depth of Cut (mm) | 22.40 |
| Maximum Depth of Cut (Decimal Inch) | 0.8820 |
| ISO Number | HP ADCR 220704PDFR-P LM |
