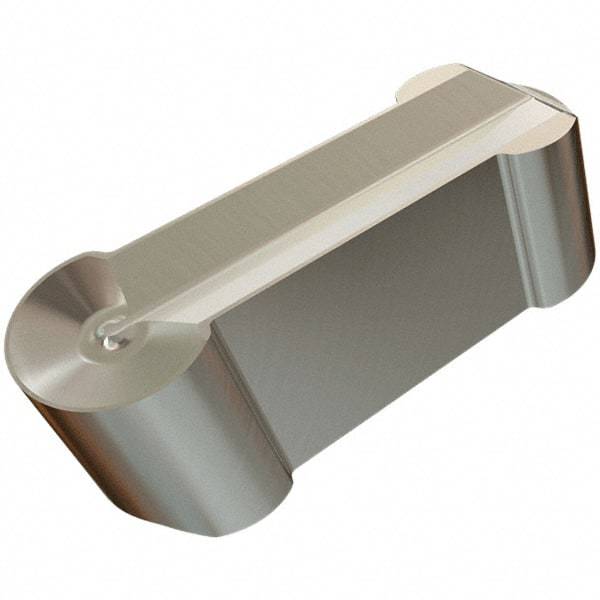

Iscar - 500250GIPA YZ Grade ID5, 5mm Cutting Width Polycrystalline Diamond (PCD) Grooving Insert - 2.5mm Max Depth of Cut, Neutral, 2.5mm Corner Radius, Uncoated
Item #: 45388253
Brand: Iscar
Model #: 6404003
Exact Tooling IR#: 04
Features and Benefits
Polycrystalline Diamond (PCD) is a synthetic diamond. It is shock resistant, wear resistant and allows for cutting at high speeds on nonferrous material.
| Product Specifications | |
|---|---|
| Insert Style | GIPA |
| Insert Size | 500250 |
| Material | Polycrystalline Diamond (PCD) |
| Cutting Width (mm) | 5.00 |
| Cutting Width (Decimal Inch) | 0.1970 |
| Maximum Depth of Cut (mm) | 2.50 |
| Maximum Depth of Cut (Decimal Inch) | 0.0984 |
| Manufacturer's Grade | ID5 |
| Coating | Uncoated |
| Insert Hand | Neutral |
| Relief Angle | 7 |
| Chipbreaker | YZ |
| Multi-Use Tool | No |
| Corner Radius (mm) | 2.50 |
| Corner Radius (Decimal Inch) | 0.0984 |
| Overall Length (mm) | 15.00 |
| Overall Length (Decimal Inch) | 0.5906 |
| Series | Cut Grip |
