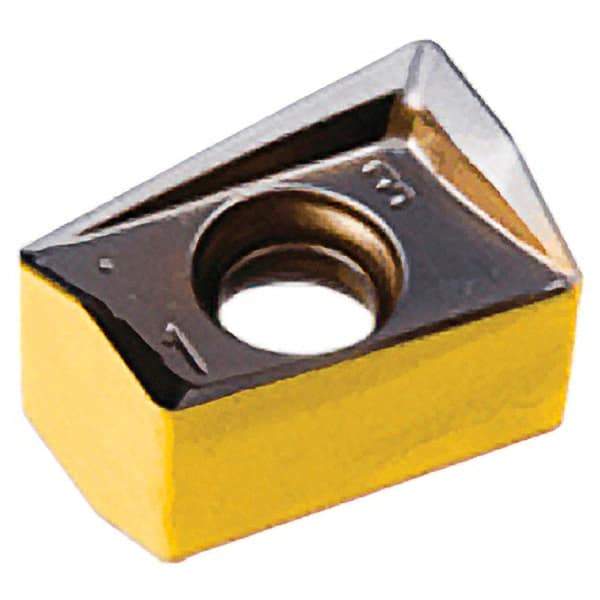

Iscar - H490 ANKX120508 Grade DT7150 Carbide Milling Insert - Al2O3/TiAlN Finish, 0.3602" Thick, 0.8mm Corner Radius
Item #: 45372992
Brand: Iscar
Model #: 5605569
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | H490 ANKX |
| Insert Size | 120508 |
| Material | Carbide |
| Manufacturer's Grade | DT7150 |
| Coating | Al2O3/TiAlN |
| Width (Decimal Inch) | 0.3937 |
| Length (Decimal Inch) | 0.5380 |
| Thickness (Decimal Inch) | 0.3602 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Corner Radius (mm) | 0.80 |
| Relief Angle | 0.000 |
| Coating Process | PVD/CVD |
| Included Angle | 85 |
| Shape | Parallelogram |
| Insert Hand | Right Hand |
| ISO Number | H490 ANKX 120508PNTR |
