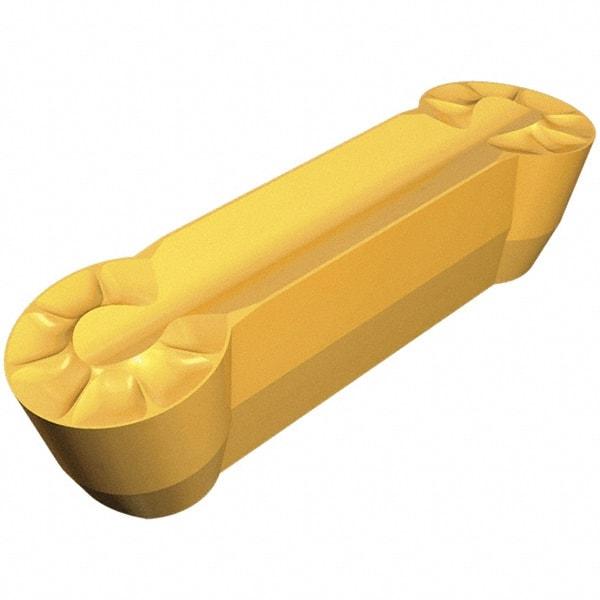

Iscar - 1050GDMY Grade IC908, 10mm Cutting Width Carbide Grooving Insert - 5mm Max Depth of Cut, Neutral, 5mm Corner Radius, TiAlN Finish
Item #: 45370517
Brand: Iscar
Model #: 6480048
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | GDMY |
| Insert Size | 1050 |
| Material | Carbide |
| Cutting Width (mm) | 10.00 |
| Cutting Width (Decimal Inch) | 0.3937 |
| Maximum Depth of Cut (mm) | 5.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.1970 |
| Manufacturer's Grade | IC908 |
| Coating | TiAlN |
| Insert Hand | Neutral |
| Relief Angle | 7 |
| Multi-Use Tool | Yes |
| Multi-Use Application | Profiling |
| Corner Radius (mm) | 5.00 |
| Corner Radius (Decimal Inch) | 0.1970 |
| Coating Process | PVD |
| Overall Length (mm) | 30.00 |
| Overall Length (Decimal Inch) | 1.1811 |
| Series | Cut Grip |
