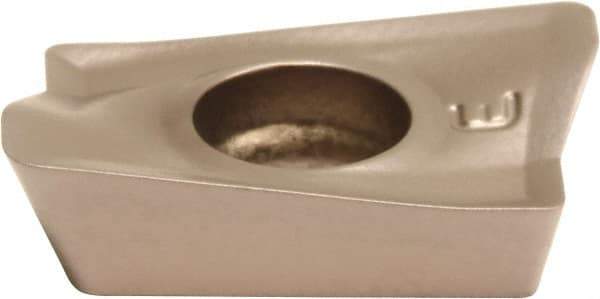

Sumitomo - AXMT123508 Grade ACK200 Carbide Milling Insert - Al2O3 Finish, 0.138" Thick, 0.031" Corner Radius
Item #: 45204765
Brand: Sumitomo
Model #: 14HC317
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | AXMT |
| Insert Size | 123508 |
| Material | Carbide |
| Manufacturer's Grade | ACK200 |
| Coating | Al2O3 |
| Width (Decimal Inch) | 0.2600 |
| Length (Decimal Inch) | 0.4720 |
| Thickness (Decimal Inch) | 0.1380 |
| Corner Radius (Decimal Inch) | 0.0310 |
| Relief Angle | 11.000 |
| Coating Process | CVD |
| Shape | Parallelogram |
| Cutter Series Compatibility | WEX2000 CUTTER SERIES |
