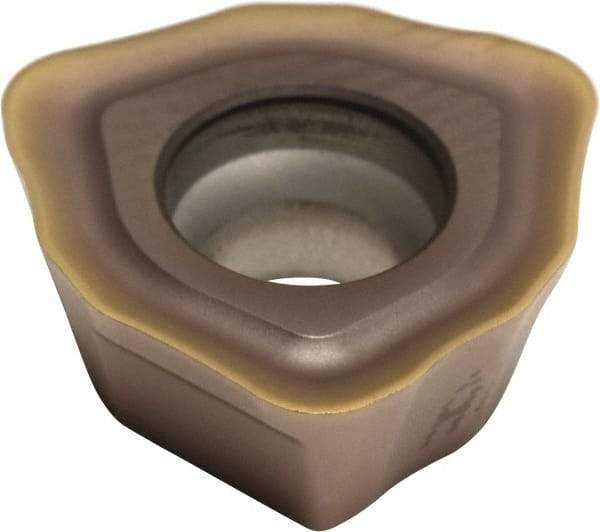

Sumitomo - WDMT0603 Grade ACP300 Carbide Milling Insert - TiAlN/AlCrN Finish, 0.1181" Thick, 1/4" Inscribed Circle, 0.0591" Corner Radius
Item #: 45204658
Brand: Sumitomo
Model #: 14HB627
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | WDMT |
| Insert Size | 0603 |
| Material | Carbide |
| Manufacturer's Grade | ACP300 |
| Coating | TiAlN/AlCrN |
| Inscribed Circle (Decimal Inch) | 0.2500 |
| Thickness (Decimal Inch) | 0.1181 |
| Corner Radius (Decimal Inch) | 0.0591 |
| Coating Process | PVD |
| Included Angle | 80 |
| Shape | Trigon |
| Cutter Series Compatibility | MSX |
