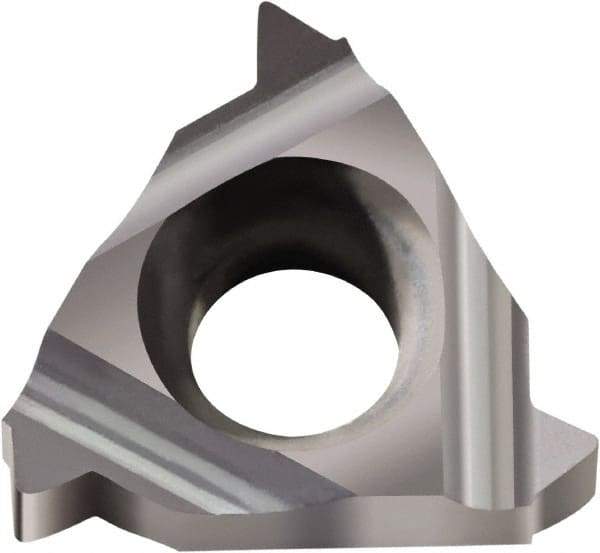

Hertel - 08IR/L Internal Left & Right Hand ISO Laydown Threading Insert - Grade HG225TR, TiAlN Coated Carbide, 3/16" Inscribed Circle
Item #: 44451714
Brand: Hertel
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Material | Carbide |
| Insert Style | 08IR/L |
| Insert Hand | Left Hand, Right Hand |
| Thread Type | Internal |
| Thread Standard | ISO |
| Material Grade | Submicron |
| Manufacturer's Grade | HG225TR |
| Pitch (mm) | 2.00 |
| Inscribed Circle (Inch) | 3/16 |
| Inscribed Circle (Decimal Inch) | 0.1875 |
| Thickness (Decimal Inch) | 0.0870 |
| Thickness (mm) | 2.21 |
| Included Angle of Threading Tip | 60 |
| Coating | TiAlN |
| Coating Process | PVD |
| Insert Size | 08 |
