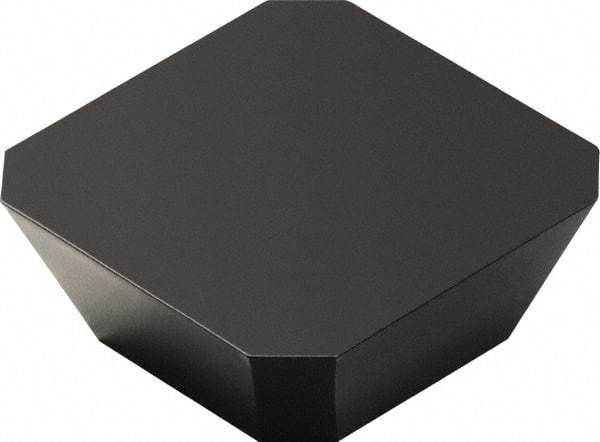

Sandvik Coromant - SEK43 Grade 3040 Carbide Milling Insert - TiCN/Al2O3 Finish, 4.76mm Thick, 12.7mm Inscribed Circle, 1.2mm Corner Radius
Item #: 43954346
Brand: Sandvik Coromant
Model #: 5749445
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | SEK |
| Insert Size | 43 |
| Material | Carbide |
| Manufacturer's Grade | 3040 |
| Coating | TiCN/Al2O3 |
| Inscribed Circle (mm) | 12.70 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Thickness (mm) | 4.76 |
| Thickness (Decimal Inch) | 0.1874 |
| Corner Radius (Decimal Inch) | 0.0472 |
| Corner Radius (mm) | 1.20 |
| Relief Angle | 20.000 |
| Rake Angle | 0 |
| Rake | Neutral |
| Coating Process | CVD |
| Included Angle | 90 |
| Shape | Square |
| Insert Hand | Neutral |
| Maximum Depth of Cut (mm) | 6.40 |
| Maximum Depth of Cut (Decimal Inch) | 0.2520 |
| Cutting Edge Style | Sharp |
| Manufacturers Catalog Number | 5749445 |
| ISO Number | SEKN 12 04 AZ 3040 |
