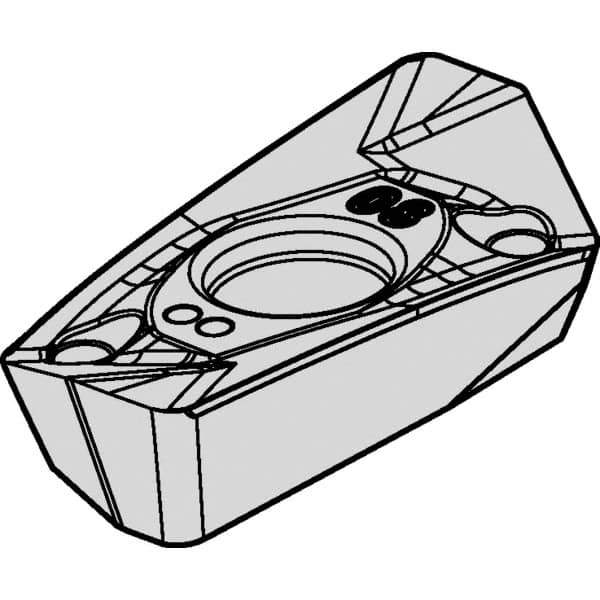

Kennametal - EP1416 E.HD Grade KCSM30 Carbide Milling Insert - TiAlN Finish, 0.1772" Thick, 1.6mm Corner Radius
Item #: 42705988
Brand: Kennametal
Model #: 5520493
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | EP |
| Insert Size | 1416 |
| Material | Carbide |
| Manufacturer's Grade | KCSM30 |
| Coating | TiAlN |
| Width (Decimal Inch) | 0.3291 |
| Length (Decimal Inch) | 0.6886 |
| Thickness (Decimal Inch) | 0.1772 |
| Corner Radius (Decimal Inch) | 0.0630 |
| Corner Radius (mm) | 1.60 |
| Relief Angle | 15.000 |
| Included Angle | 75 |
| Shape | Parallelogram |
| Insert Hand | Right Hand |
| Chipbreaker | E.HD |
| Cutting Edge Style | Honed |
| ISO Number | EDPT140416PDERHD |
