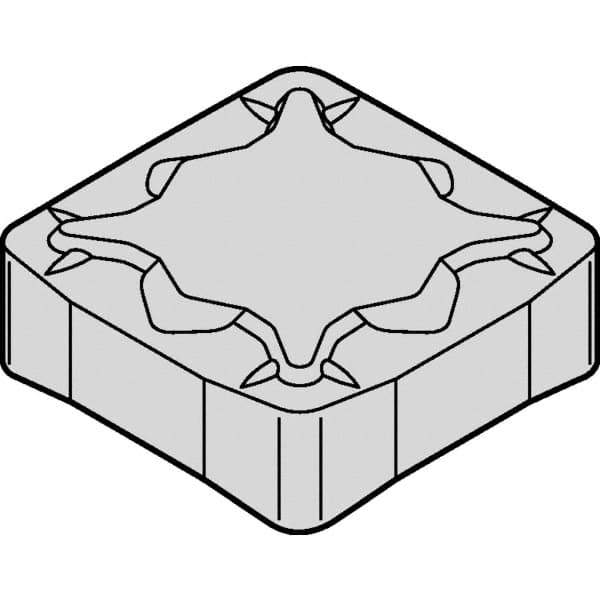

Kennametal - SNXF43 HE Grade KCK15 Carbide Milling Insert - TiN/TiCN/Al2O3 Finish, 0.1835" Thick, 1/2" Inscribed Circle, 1.2mm Corner Radius
Item #: 42701599
Brand: Kennametal
Model #: 5420841
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | SNXF |
| Insert Size | 43 |
| Material | Carbide |
| Manufacturer's Grade | KCK15 |
| Coating | TiN/TiCN/Al2O3 |
| Length (Decimal Inch) | 0.5000 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Thickness (Decimal Inch) | 0.1835 |
| Corner Radius (Decimal Inch) | 0.0472 |
| Corner Radius (mm) | 1.20 |
| Relief Angle | 0.000 |
| Coating Process | CVD |
| Included Angle | 90 |
| Shape | Square |
| Insert Hand | Neutral |
| Chipbreaker | HE |
| Cutting Edge Style | Honed T-Land |
| ISO Number | SNXF1204ZNSNHE |
