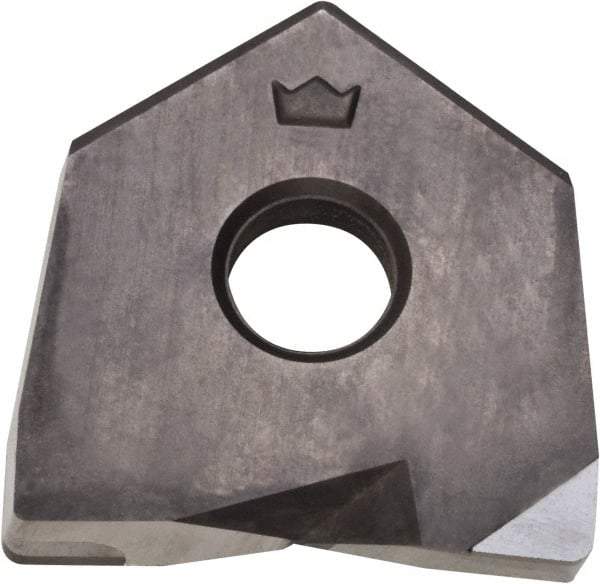

Millstar - BDS16 Grade CM10 CBN Milling Insert - Uncoated, 1/8" Thick, 16mm Inscribed Circle, 1.3mm Corner Radius
Item #: 42589044
Brand: Millstar
Model #: BDS16N1CBN
Exact Tooling IR#: 04
Features and Benefits
Cubic boron nitride (CBN) is similar in hardness to diamond. It is commonly used for machining hardened steel and related alloys at high temperatures.
| Product Specifications | |
|---|---|
| Insert Style | BDS |
| Insert Size | 16 |
| Material | CBN |
| Material Grade | C1/C2/C3/C4/C5/C6 |
| Manufacturer's Grade | CM10 |
| Coating | Uncoated |
| Width (mm) | 16.00 |
| Length (mm) | 11.55 |
| Inscribed Circle (mm) | 16.00 |
| Thickness (Inch) | 1/8 |
| Thickness (Decimal Inch) | 0.1250 |
| Corner Radius (mm) | 1.30 |
| Rake | Neutral |
| Coating Process | CBN |
| Insert Hand | Right Hand |
| Maximum Depth of Cut (mm) | 3.00 |
| Cutting Edge Style | Honed |
