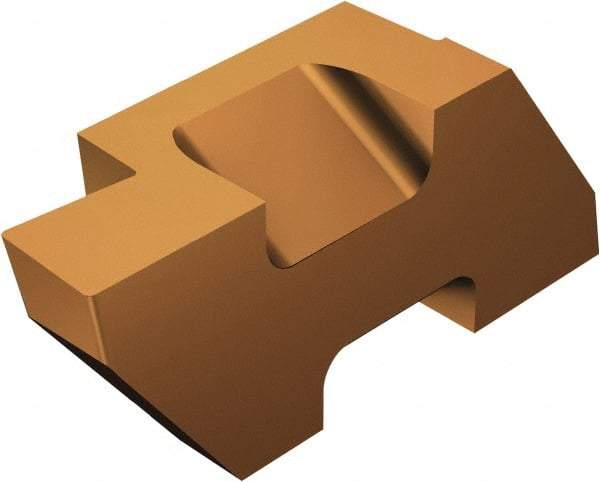

Sandvik Coromant - TLG3 Grade 1125 1/16" Cutting Width Carbide Grooving Insert - 3/32" Max Depth of Cut, Left Hand, 0.19mm Corner Radius, TiCrAlN/TiAlN Finish
Item #: 42195180
Brand: Sandvik Coromant
Model #: 5753587
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | TLG |
| Insert Size | 3 |
| Material | Carbide |
| Cutting Width (mm) | 1.57 |
| Cutting Width (Inch) | 1/16 |
| Cutting Width (Decimal Inch) | 0.0620 |
| Maximum Depth of Cut (mm) | 2.39 |
| Maximum Depth of Cut (Inch) | 3/32 |
| Maximum Depth of Cut (Decimal Inch) | 0.0940 |
| Manufacturer's Grade | 1125 |
| Coating | TiCrAlN/TiAlN |
| Cutting Direction | Left Hand |
| Insert Hand | Left Hand |
| Cutting Height (mm) | 8.74 |
| Cutting Height (Decimal Inch) | 0.3440 |
| Relief Angle | 10 |
| Insert Seat Size | 3 |
| Multi-Use Tool | Yes |
| Multi-Use Application | Parting; Grooving; Slitting; Slotting; Plunging |
| Minimum Corner Radius (Decimal Inch) | 0.0075 |
| Maximum Corner Radius (Decimal Inch) | 0.0075 |
| Corner Radius (mm) | 0.19 |
| Corner Radius (Decimal Inch) | 0.0075 |
| Coating Process | PVD |
| Overall Length (mm) | 16.10 |
| Overall Length (Decimal Inch) | 0.6339 |
| Series | Top Lok |
| Rake Angle | 0 |
| Rake | Neutral |
| ISO Number | TLG-3062L 1125 |
| Manufacturers Catalog Number | TLG-3062L 1125 |
| Overall Width (mm) | 1.57 |
| Overall Width (Decimal Inch) | 0.0620 |
| Insert Thickness (Decimal Inch) | 0.3440 |
