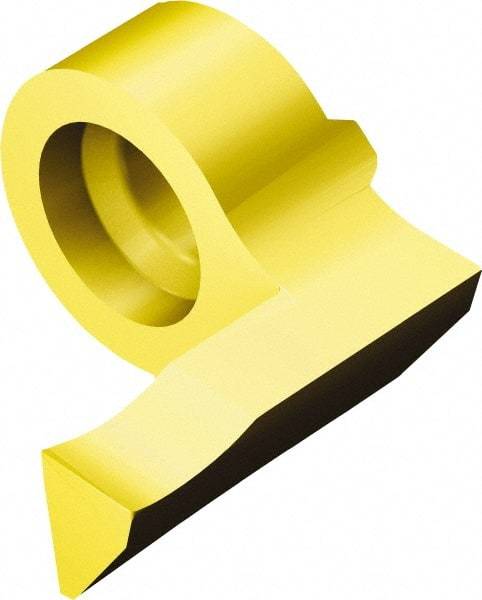

Sandvik Coromant - 09MB Grade 1025, 2mm Cutting Width Carbide Grooving Insert - 5mm Max Depth of Cut, Right Hand, 0.2mm Corner Radius, TiAlN/TiN Finish
Item #: 40735441
Brand: Sandvik Coromant
Model #: 5735944
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | MB |
| Insert Size | 09 |
| Material | Carbide |
| Cutting Width (mm) | 2.00 |
| Cutting Width (Decimal Inch) | 0.0787 |
| Maximum Depth of Cut (mm) | 5.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.1969 |
| Manufacturer's Grade | 1025 |
| Coating | TiAlN/TiN |
| Cutting Direction | Right Hand |
| Insert Hand | Right Hand |
| Cutting Height (mm) | 0.00 |
| Cutting Height (Decimal Inch) | 0.0000 |
| Relief Angle | 2 |
| Insert Seat Size | 9 |
| Multi-Use Tool | Yes |
| Multi-Use Application | Parting; Grooving; Slitting; Slotting; Plunging |
| Minimum Corner Radius (Decimal Inch) | 0.0071 |
| Maximum Corner Radius (Decimal Inch) | 0.0087 |
| Corner Radius (mm) | 0.2 |
| Corner Radius (Decimal Inch) | 0.0079 |
| Coating Process | PVD |
| Overall Length (mm) | 11.00 |
| Overall Length (Decimal Inch) | 0.4331 |
| Series | CoroCut MB |
| Rake Angle | 0 |
| Rake | Neutral |
| ISO Number | MB-09FA200-02-14R 1025 |
| Manufacturers Catalog Number | MB-09FA200-02-14R 1025 |
| Overall Width (mm) | 2.00 |
| Overall Width (Decimal Inch) | 0.0787 |
| Insert Thickness (Decimal Inch) | 0.3543 |
