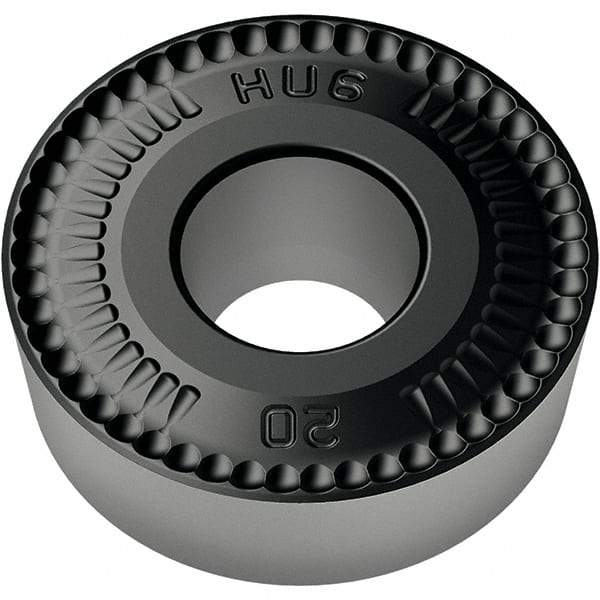

Walter - RCMX2507M0 HU6 Grade WPP10S Carbide Turning Insert - TiCN/Al2O3/TiN Finish, Round, 25mm Inscr Circle, 5/16" Thick
Item #: 40537524
Brand: Walter
Model #: 6416507
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | RCMX |
| Insert Size | 2507M0 |
| Material | Carbide |
| Inscribed Circle (mm) | 25.00 |
| Inscribed Circle (Decimal Inch) | 0.9843 |
| Thickness (Inch) | 5/16 |
| Thickness (Decimal Inch) | 0.3125 |
| Manufacturer's Grade | WPP10S |
| Coating | TiCN/Al2O3/TiN |
| Material Grade | P10/K20 |
| Chip Breaker | HU6 |
| ISO Number | RCMX2507M0-HU6 |
| Rake | Positive |
| Relief Angle | 7 |
| Coating Process | CVD |
| Manufacturers Catalog Number | RCMX2507M0-HU6 |
| Primary Workpiece Material | P |
| Secondary Workpiece Material | K |
| Series | Tiger-tec Silver |
| Maximum Depth of Cut (mm) | 11.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.4331 |
| Insert Holding Method | Screw |
| Multi Use Application | Turning |
| MultiUseTool | Yes |
| Shape | Round |
