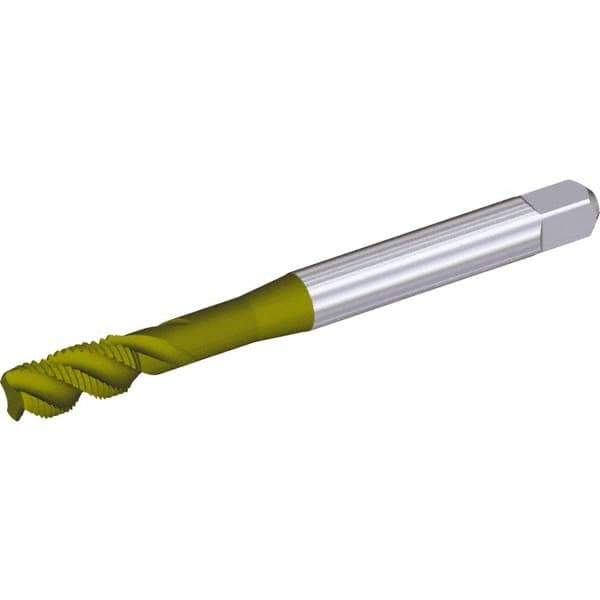

Kennametal - M18x2.00 Metric Fine 4 Flute Bottoming Spiral Flute Tap - Cobalt, TiN Finish, 125mm OAL, Right Hand Flute, Right Hand Thread, H6
Item #: 37924776
Brand: Kennametal
Model #: 6173115
Exact Tooling IR#: 04
Features and Benefits
Bottoming chamfers are used for threading blind holes. They have 1 to 2 threads.
Cobalt is harder than high speed steel and provides better wear resistance. It is commonly used on high tensile alloys.
Titanium Nitride (TiN) is a multi-purpose coating which increases chip flow in softer materials. The heat and hardness resistance allows the tool to run at higher speeds than uncoated tools.
Fast Spiral Flutes with 40-53 degree angles are suitable for ductile materials like aluminum and copper; medium to high carbon steels and free machining stainless steels.
| Product Specifications | |
|---|---|
| Thread Size (mm) | M18x2.00 |
| Chamfer | Bottoming |
| Thread Limit | H6 |
| Number of Flutes | 4 |
| Material | Cobalt |
| Finish/Coating | TiN |
| Thread Direction | Right Hand |
| Flute Direction | Right Hand |
| Through Coolant | NonThrough Coolant |
| Overall Length (Decimal Inch) | 4.9200 |
| Overall Length (mm) | 125.00 |
| Helix Angle | 45 |
| Thread Standard | Metric Fine |
| Thread Length (Decimal Inch) | 0.9800 |
| Thread Length (mm) | 25.00 |
| Flute Type | Fast Spiral |
| Neck Length (Decimal Inch) | 1.4200 |
| Tapping Depth (Decimal Inch) | 2.4000 |
| Tapping Depth (mm) | 61.00 |
| Shank Diameter (Decimal Inch) | 0.5512 |
| Shank Diameter (mm) | 14.00 |
| Shank Length (Decimal Inch) | 2.5200 |
| Shank Length (mm) | 64 |
| Square Length (Inch) | 0.5500 |
