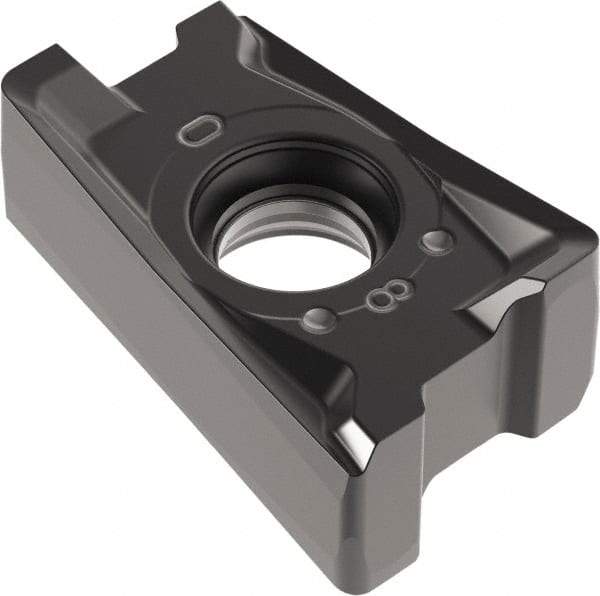

Kennametal - LNP433 GE Grade KC725M Carbide Milling Insert - TiN/TiCN/TiN Finish, 3/16" Thick, 3/64" Corner Radius
Item #: 37856838
Brand: Kennametal
Model #: 6131430
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | LNP |
| Insert Size | 433 |
| Material | Carbide |
| Manufacturer's Grade | KC725M |
| Coating | TiN/TiCN/TiN |
| Width (mm) | 6.50 |
| Length (Inch) | 31/64 |
| Length (Decimal Inch) | 0.4844 |
| Thickness (Inch) | 3/16 |
| Thickness (Decimal Inch) | 0.1875 |
| Corner Radius (Decimal Inch) | 0.0469 |
| Hole Diameter (mm) | 3.40 |
| Coating Process | PVD |
| Shape | Rectangle |
| Insert Hand | Right Hand |
| Chipbreaker | GE |
| Manufacturers Catalog Number | LNPU433SRGE |
