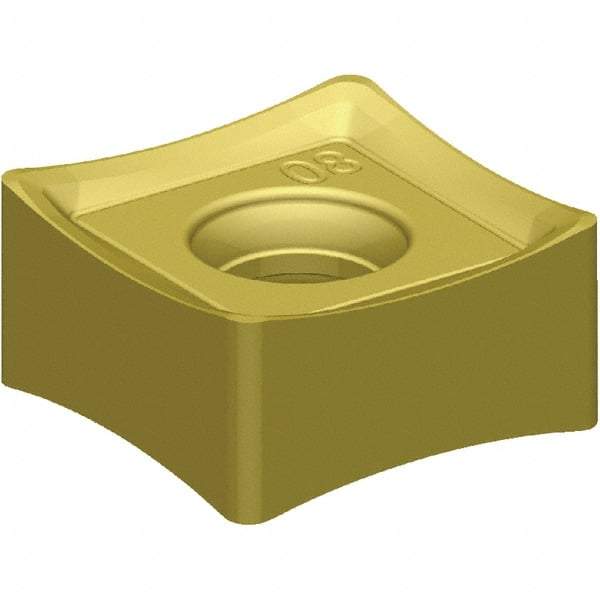

Kennametal - SNHJ442 GD Grade KC520M Carbide Milling Insert - TiAlN Finish, 1/4" Thick, 1/2" Inscribed Circle
Item #: 37856531
Brand: Kennametal
Model #: 6039817
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | SNHJ |
| Insert Size | 442 |
| Material | Carbide |
| Manufacturer's Grade | KC520M |
| Coating | TiAlN |
| Width (Inch) | 1/2 |
| Width (Decimal Inch) | 0.5000 |
| Length (Inch) | 1/2 |
| Length (Decimal Inch) | 0.5000 |
| Inscribed Circle (Inch) | 1/2 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Thickness (Inch) | 1/4 |
| Thickness (Decimal Inch) | 0.2500 |
| Hole Diameter (mm) | 5.00 |
| Coating Process | PVD |
| Shape | Square |
| Insert Hand | Neutral |
| Chipbreaker | GD |
| Manufacturers Catalog Number | SNHJ442SNGD |
