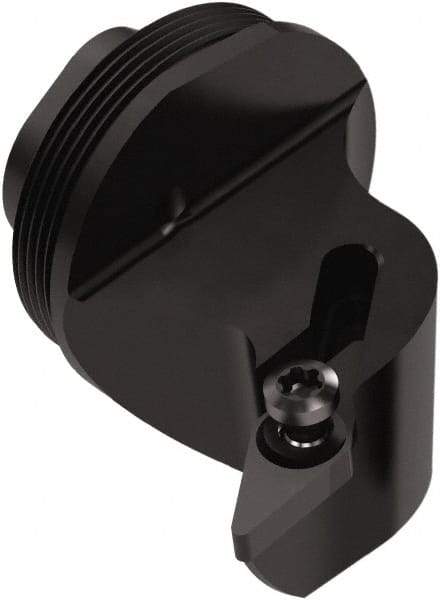

Seco - SVUNL, Left Hand Cut, 93° Lead Angle, 32mm Shank Height x 32mm Shank Width, Negative Rake Indexable Turning Toolholder - 32mm OAL, VN..1304.. Insert Compatibility, Series GL
Item #: 37744257
Brand: Seco
Model #: 48802
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hand of Holder | Left Hand |
| Toolholder Style | SVUNL |
| Rake | Negative |
| Rake Angle | 0 |
| Series | GL |
| Lead Angle | 93 |
| Shank Width (mm) | 32.00 |
| Shank Width (Decimal Inch) | 1.2598 |
| Shank Height (mm) | 32.00 |
| Shank Height (Decimal Inch) | 1.2598 |
| Overall Length (mm) | 32.00 |
| Overall Length (Decimal Inch) | 1.2598 |
| Insert Compatibility | VN..1304.. |
| Multi-Use Tool | No |
| Multi-Use Application | Turning |
| Insert Holding Method | Hole & Top Clamp |
| Back of Bar to Cutting Edge (mm) | 6.00 |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.2362 |
| Center to Cutting Edge (Decimal Inch) | 0.8661 |
| Insert Inscribed Circle (Decimal Inch) | 0.1560 |
| Insert Width (mm) | 4.76 |
| Insert Width (Inch) | 3/16 |
| Insert Width (Decimal Inch) | 0.1875 |
| Toolholder Material | Steel |
