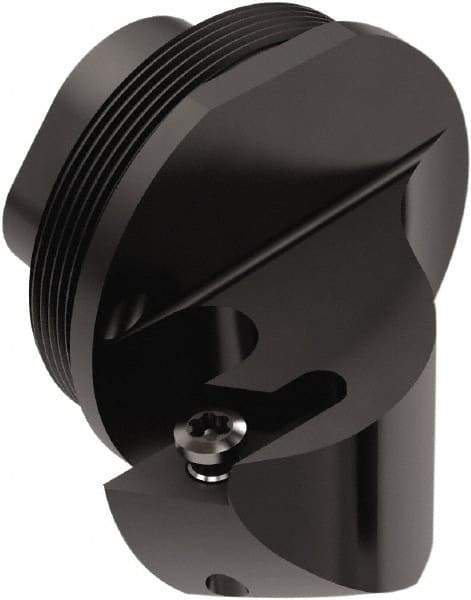

Seco - SDUCL, Left Hand Cut, 93° Lead Angle, 50mm Shank Height x 50mm Shank Width, Positive Rake Indexable Turning Toolholder - 17mm OAL, DC..11T3.. Insert Compatibility, Series GL
Item #: 37744091
Brand: Seco
Model #: 48901
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hand of Holder | Left Hand |
| Toolholder Style | SDUCL |
| Rake | Positive |
| Rake Angle | 7 |
| Series | GL |
| Lead Angle | 93 |
| Shank Width (mm) | 50.00 |
| Shank Width (Decimal Inch) | 1.9685 |
| Shank Height (mm) | 50.00 |
| Shank Height (Decimal Inch) | 1.9685 |
| Overall Length (mm) | 17.00 |
| Overall Length (Decimal Inch) | 0.6693 |
| Insert Compatibility | DC..11T3.. |
| Multi-Use Tool | No |
| Multi-Use Application | Turning |
| Insert Holding Method | Screw |
| Back of Bar to Cutting Edge (mm) | 7.00 |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.2756 |
| Center to Cutting Edge (Decimal Inch) | 1.2598 |
| Insert Inscribed Circle (Inch) | 1/8 |
| Insert Inscribed Circle (Decimal Inch) | 0.1250 |
| Insert Width (mm) | 3.96 |
| Insert Width (Inch) | 0.1560 |
| Insert Width (Decimal Inch) | 0.1560 |
| Toolholder Material | Steel |
