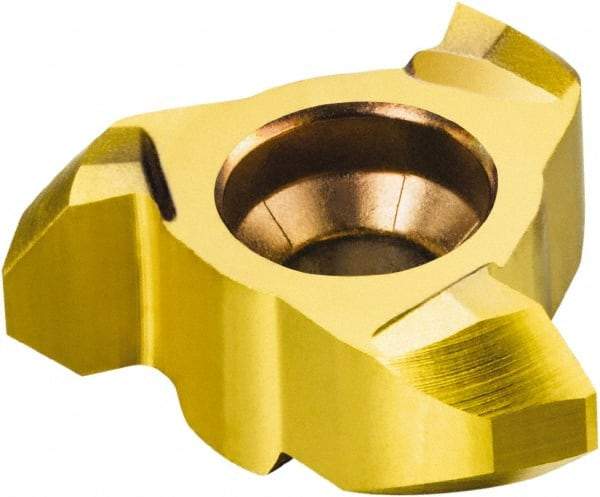

Sandvik Coromant - 327-CH Grade 1025 Carbide Chamfer Milling Tip Insert - TiCN/TiN Finish, 3 Flutes, 11.7mm Cutting Diam, 1/32" Depth of Cut, 3.5mm Extension, 0° Helix
Item #: 36563559
Brand: Sandvik Coromant
Model #: 5758769
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
TiCN/TiN is a multi-layered coating designed to increase tool life. It is commonly used at high cutting speeds for smoothing and finishing of the workpiece.
| Product Specifications | |
|---|---|
| Series | CoroMill 327 |
| Milling Tip Style | 327-CH |
| Milling Tip Type | Chamfer Mill |
| Material | Carbide |
| Cutting Diameter (mm) | 11.70 |
| Cutting Diameter (Decimal Inch) | 0.4606 |
| Manufacturer's Grade | 1025 |
| Depth of Cut (Decimal Inch) | 0.0313 |
| Number of Flutes | 3 |
| Coating | TiCN/TiN |
| Milling Tip Full Description | Chamfering |
| Coating Process | PVD |
| Extension From Holder (mm) | 3.50 |
| Extension From Holder (Decimal Inch) | 0.1378 |
| Lead Angle | 45 |
| Helix Angle | 0 |
| Style | 327-CH |
| Manufacturers Catalog Number | 5758769 |
