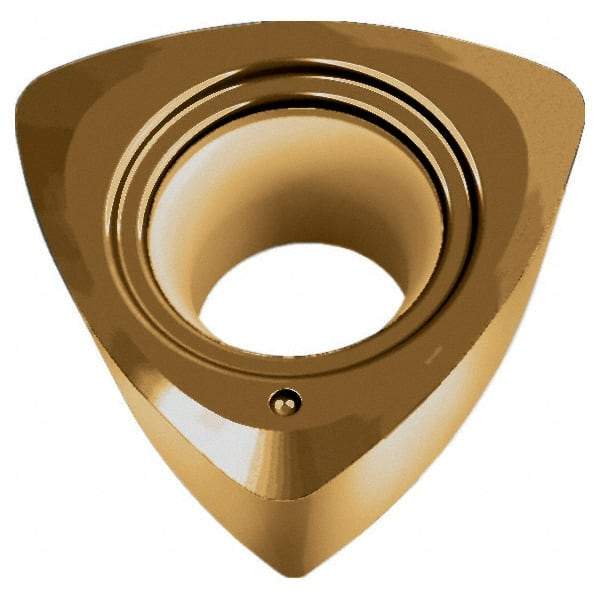

Walter - P26337R25 Grade WKP25S Carbide Milling Insert - TiCN/Al2O3/TiCN Finish, 0.219" Thick, 13mm Inscribed Circle, 2.01mm Corner Radius
Item #: 36293546
Brand: Walter
Model #: 6071681
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | P26337 |
| Insert Size | R25 |
| Material | Carbide |
| Material Grade | P25/K25 |
| Manufacturer's Grade | WKP25S |
| Coating | TiCN/Al2O3/TiCN |
| Inscribed Circle (mm) | 13.00 |
| Inscribed Circle (Decimal Inch) | 0.5120 |
| Thickness (Decimal Inch) | 0.2190 |
| Corner Radius (Decimal Inch) | 0.0790 |
| Corner Radius (mm) | 2.01 |
| Rake | Positive |
| Coating Process | CVD |
| Shape | Triangle |
| Manufacturers Catalog Number | P26337R25 |
