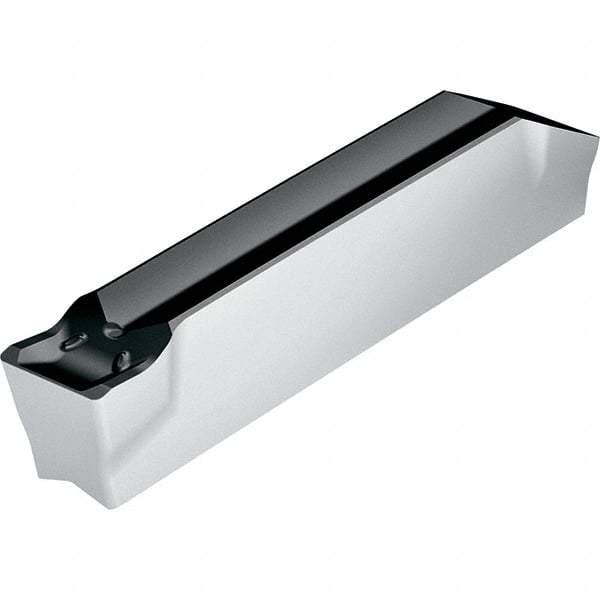

Walter - 3F400N03GX CE4 Grade WSM43S, 4mm Cutting Width Carbide Grooving Insert - Neutral, 0.3mm Corner Radius, TiAlN/Al2O3/Al Finish
Item #: 36288595
Brand: Walter
Model #: 6092347
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | GX |
| Insert Size | 3F400N03 |
| Material | Carbide |
| Cutting Width (mm) | 4.00 |
| Cutting Width (Decimal Inch) | 0.1575 |
| Material Grade | S45/M45/P45 |
| Manufacturer's Grade | WSM43S |
| Coating | TiAlN/Al2O3/Al |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Chipbreaker | CE4 |
| Multi-Use Tool | Yes |
| Multi-Use Application | Cut-Off; Grooving |
| Corner Radius (mm) | 0.30 |
| Corner Radius (Decimal Inch) | 0.0118 |
| Coating Process | PVD |
| Overall Length (mm) | 23.70 |
| Overall Length (Decimal Inch) | 0.9331 |
| Series | Tiger-tec |
| ISO Number | GX24-3F400N03-CE4 |
| Manufacturers Catalog Number | GX24-3F400N03-CE4 |
