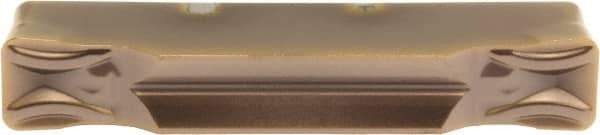

Sumitomo - 5187GCMN MG Grade AC830P, 3/16" Cutting Width Carbide Grooving Insert - 1" Max Depth of Cut, Neutral, 1/32" Corner Radius
Item #: 36076800
Brand: Sumitomo
Model #: 18RBW10
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | GCMN |
| Insert Size | 5187 |
| Material | Carbide |
| Cutting Width (mm) | 4.76 |
| Cutting Width (Inch) | 3/16 |
| Cutting Width (Decimal Inch) | 0.1875 |
| Maximum Depth of Cut (mm) | 25.40 |
| Maximum Depth of Cut (Inch) | 1 |
| Maximum Depth of Cut (Decimal Inch) | 1.0000 |
| Manufacturer's Grade | AC830P |
| Insert Hand | Neutral |
| Cutting Height (mm) | 4.09 |
| Cutting Height (Inch) | 0.1610 |
| Cutting Height (Decimal Inch) | 0.1610 |
| Lead Angle | 0 |
| Relief Angle | 5 |
| Insert Seat Size | 5 |
| Chipbreaker | MG |
| Multi-Use Tool | Yes |
| Minimum Corner Radius (Decimal Inch) | 0.0315 |
| Maximum Corner Radius (Decimal Inch) | 0.0315 |
| Corner Radius (mm) | 0.80 |
| Corner Radius (Inch) | 0.0315 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Series | GND |
| Overall Width (mm) | 4.76 |
| Overall Width (Inch) | 3/16 |
| Overall Width (Decimal Inch) | 0.1875 |
