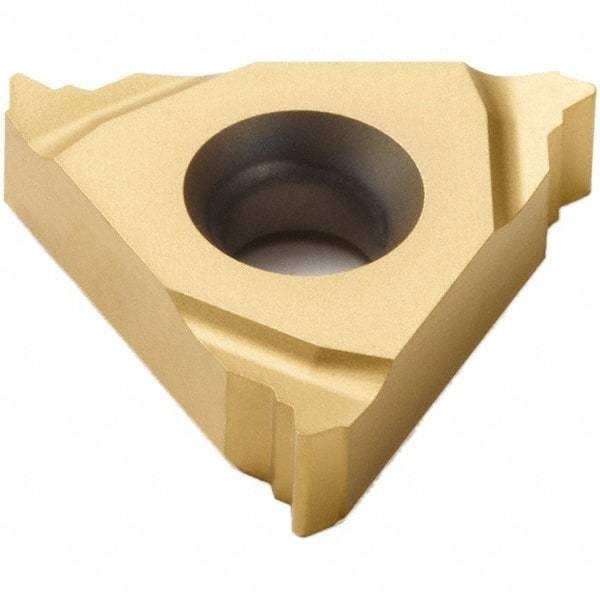

Seco - 16ER External Right Hand MJ Laydown Threading Insert - Grade CP200, TiAlN/TiN Coated Carbide, 9.53mm Inscribed Circle
Item #: 35888643
Brand: Seco
Model #: 04998
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Material | Carbide |
| Insert Style | 16ER |
| Insert Hand | Right Hand |
| Thread Type | External |
| Thread Standard | MJ |
| Material Grade | C2/C3 |
| Manufacturer's Grade | CP200 |
| Pitch (mm) | 2.00 |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Inscribed Circle (mm) | 9.53 |
| Inscribed Circle (Inch) | 3/8 |
| Thickness (Decimal Inch) | 0.1370 |
| Included Angle of Threading Tip | 60 |
| Coating | TiAlN/TiN |
| Coating Process | PVD |
| Coating Process | PVD |
| Corner Radius (Decimal Inch) | 0.0130 |
| Corner Radius (mm) | 0.33 |
| Corner Radius (Decimal Inch) | 0.0130 |
| Number of Teeth Per Side | 3 |
| Insert Size | 16 |
