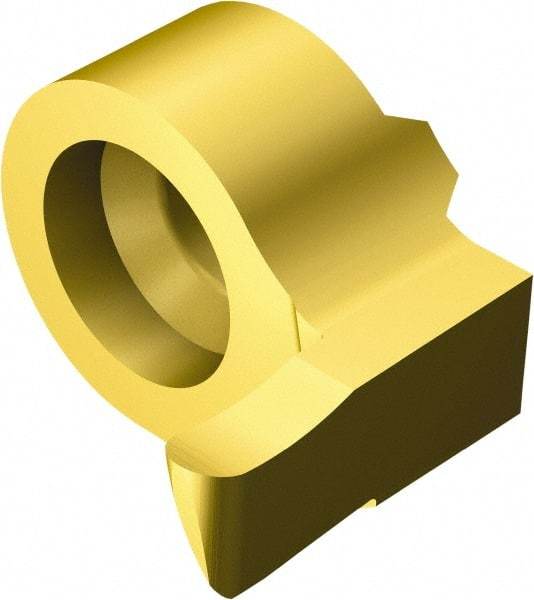

Sandvik Coromant - MB..FBR Grade 1025, 1.5mm Cutting Width Carbide Grooving Insert - 2.5mm Max Depth of Cut, Left Hand, 0.75mm Corner Radius, TiAlN/TiN Finish
Item #: 35017292
Brand: Sandvik Coromant
Model #: 6879613
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | MB..FBR |
| Material | Carbide |
| Cutting Width (mm) | 1.50 |
| Cutting Width (Decimal Inch) | 0.0591 |
| Maximum Depth of Cut (mm) | 2.50 |
| Maximum Depth of Cut (Decimal Inch) | 0.0984 |
| Manufacturer's Grade | 1025 |
| Coating | TiAlN/TiN |
| Cutting Direction | Left Hand |
| Insert Hand | Left Hand |
| Lead Angle | 90 |
| Minimum Corner Radius (Decimal Inch) | 0.0000 |
| Maximum Corner Radius (Decimal Inch) | 0.0006 |
| Corner Radius (mm) | 0.75 |
| Corner Radius (Decimal Inch) | 0.029528 |
| Coating Process | PVD |
| Overall Length (mm) | 9.20 |
| Overall Length (Decimal Inch) | 0.3622 |
| Series | CoroCut MB |
| Rake Angle | 0 |
| Rake | Neutral |
| ISO Number | MB-09FBR150-075-14L 1025 |
