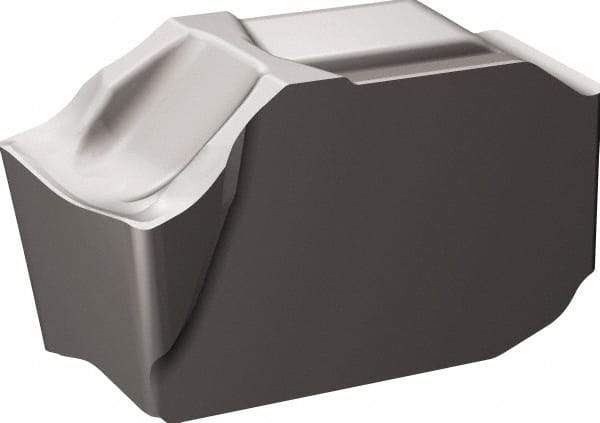

Sandvik Coromant - JQD-N SM Grade S30T, 5mm Cutting Width Carbide Grooving Insert - Neutral, TiAlN Finish
Item #: 35008036
Brand: Sandvik Coromant
Model #: 6656954
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | QD-N |
| Insert Size | J |
| Material | Carbide |
| Cutting Width (mm) | 5.00 |
| Cutting Width (Decimal Inch) | 0.1969 |
| Manufacturer's Grade | S30T |
| Coating | TiAlN |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Cutting Height (mm) | 5.00 |
| Cutting Height (Decimal Inch) | 0.1969 |
| Relief Angle | 7 |
| Insert Seat Size | J |
| Chipbreaker | SM |
| Coating Process | PVD |
| Overall Length (Decimal Inch) | 0.5512 |
| Series | CoroMill QD |
| ISO Number | QD-NJ-0500-030E-SM S30T |
| Insert Thickness (Decimal Inch) | 0.1969 |
