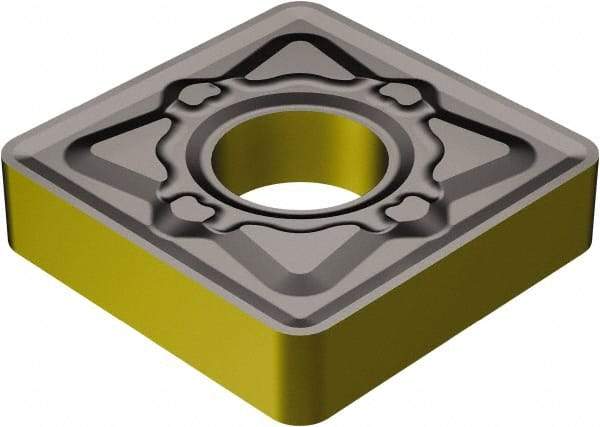

Sandvik Coromant - SNMG644 KM Grade 3210 Carbide Turning Insert - 90° Square, 3/4" Inscr Circle, 1/4" Thick, 1/16" Corner Radius
Item #: 34997692
Brand: Sandvik Coromant
Model #: 5750780
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | SNMG |
| Insert Size | 644 |
| Material | Carbide |
| Inscribed Circle (mm) | 19.05 |
| Inscribed Circle (Decimal Inch) | 0.7500 |
| Inscribed Circle (Inch) | 3/4 |
| Thickness (Inch) | 1/4 |
| Thickness (Decimal Inch) | 0.2500 |
| Thickness (mm) | 6.35 |
| Corner Radius (Inch) | 1/16 |
| Corner Radius (mm) | 1.5875 |
| Corner Radius (Decimal Inch) | 0.0625 |
| Manufacturer's Grade | 3210 |
| Chip Breaker | KM |
| Hole Diameter (mm) | 7.92 |
| Hole Diameter (Decimal Inch) | 0.3120 |
| ISO Number | SNMG 19 06 16-KM 3210 |
| Relief Angle | 0 |
| Coating Process | CVD |
| Included Angle | 90 |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Series | T-Max P |
| Maximum Depth of Cut (mm) | 17.45 |
| Insert Holding Method | Pin & Clamp |
| Cutting Edge Style | Rounded |
| Shape | Square |
