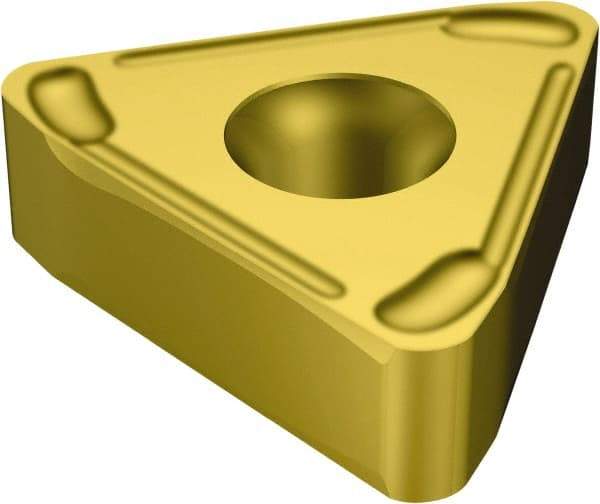

Sandvik Coromant - TNMX3309 MF Grade 2135 Carbide Turning Insert - TiCN/AI2O3/TiN Finish, 60° Triangle, 3/4" Inscr Circle, 3/8" Thick, 1/16" Corner Radius
Item #: 34996108
Brand: Sandvik Coromant
Model #: 5754792
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | TNMX |
| Insert Size | 3309 |
| Material | Carbide |
| Inscribed Circle (mm) | 19.05 |
| Inscribed Circle (Decimal Inch) | 0.7500 |
| Inscribed Circle (Inch) | 3/4 |
| Thickness (Inch) | 3/8 |
| Thickness (Decimal Inch) | 0.3750 |
| Thickness (mm) | 9.53 |
| Corner Radius (Inch) | 1/16 |
| Corner Radius (mm) | 1.5875 |
| Corner Radius (Decimal Inch) | 0.0625 |
| Manufacturer's Grade | 2135 |
| Coating | TiCN/AI2O3/TiN |
| Chip Breaker | MF |
| Hole Diameter (mm) | 7.93 |
| Hole Diameter (Decimal Inch) | 0.3122 |
| ISO Number | TNMX 33 09 31-MF 2135 |
| Lead Angle | 120.000 |
| Relief Angle | 0 |
| Coating Process | CVD |
| Included Angle | 60 |
| Cutting Direction | Left Hand |
| Insert Hand | Left Hand |
| Series | Not applicable |
| Maximum Depth of Cut (mm) | 1.30 |
| Maximum Depth of Cut (Decimal Inch) | 0.0512 |
| Insert Holding Method | Pin & Clamp |
| Cutting Edge Style | Rounded |
| Multi Use Application | peeling;peeling |
| Shape | Triangle |
