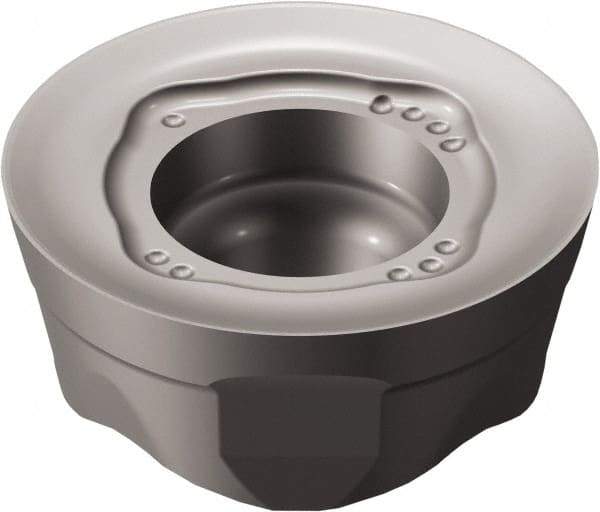

Sandvik Coromant - 6001252 ML Grade 1040 Carbide Milling Insert - TiAlN Finish, 5.2mm Thick, 12mm Inscribed Circle, 6mm Corner Radius
Item #: 32583494
Brand: Sandvik Coromant
Model #: 7082916
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | 600 |
| Insert Size | 1252 |
| Material | Carbide |
| Manufacturer's Grade | 1040 |
| Coating | TiAlN |
| Inscribed Circle (mm) | 12.00 |
| Inscribed Circle (Decimal Inch) | 0.4724 |
| Thickness (mm) | 5.20 |
| Thickness (Decimal Inch) | 0.2047 |
| Corner Radius (Decimal Inch) | 0.2362 |
| Corner Radius (mm) | 6.00 |
| Coating Process | PVD |
| Shape | Round |
| Insert Hand | Neutral |
| Chipbreaker | ML |
| ISO Number | 600-1252E-ML 1040 |
