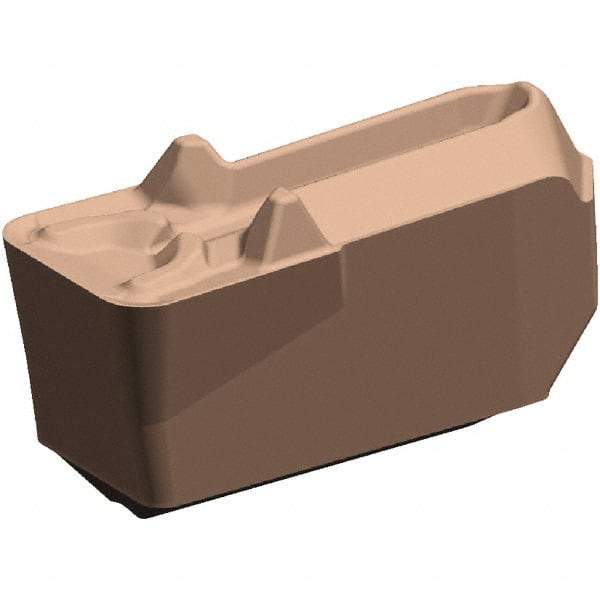

Kennametal - 10EG GUN Grade KCU25, 3/8" Cutting Width Carbide Grooving Insert - 0.209" Max Depth of Cut, Neutral, 0.047" Corner Radius, Al2O3 Finish
Item #: 31680192
Brand: Kennametal
Model #: 6231863
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | EG |
| Insert Size | 10 |
| Material | Carbide |
| Cutting Width (Inch) | 3/8 |
| Maximum Depth of Cut (Decimal Inch) | 0.2090 |
| Manufacturer's Grade | KCU25 |
| Coating | Al2O3 |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Cutting Height (Decimal Inch) | 0.3287 |
| Relief Angle | 2.25 |
| Insert Seat Size | 10 |
| Chipbreaker | GUN |
| Corner Radius (Decimal Inch) | 0.0470 |
| Coating Process | PVD |
| Series | Beyond Evolution |
| Rake Angle | 17 |
| Insert Thickness (Decimal Inch) | 0.3287 |
