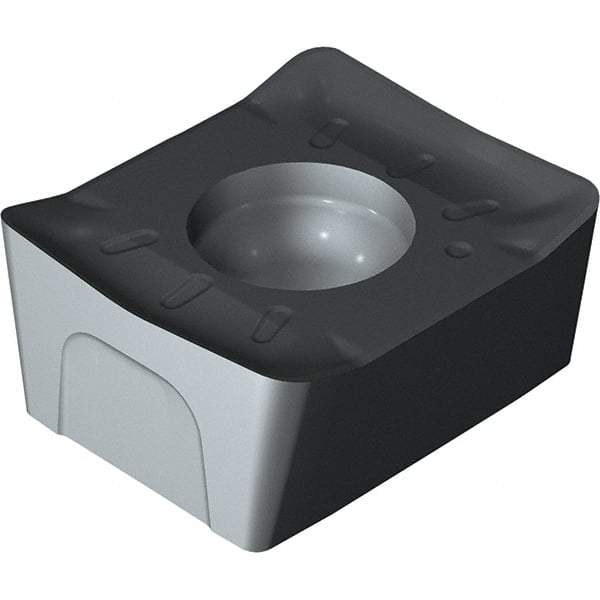

Sandvik Coromant - N331.1A08 L30 Grade 1040 Carbide Milling Insert - TiAlN Finish, 4.45mm Thick, 0.8mm Corner Radius
Item #: 30848485
Brand: Sandvik Coromant
Model #: 7295512
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | N331.1A |
| Insert Size | 08 |
| Material | Carbide |
| Manufacturer's Grade | 1040 |
| Coating | TiAlN |
| Width (mm) | 9.50 |
| Width (Decimal Inch) | 0.3740 |
| Thickness (mm) | 4.45 |
| Thickness (Decimal Inch) | 0.1752 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Corner Radius (mm) | 0.80 |
| Primary Workpiece Material | M |
| Coating Process | PVD |
| Shape | Rectangle |
| Insert Hand | Neutral |
| Chipbreaker | L30 |
| Manufacturers Catalog Number | N331.1A-084508E-L30 1040 |
