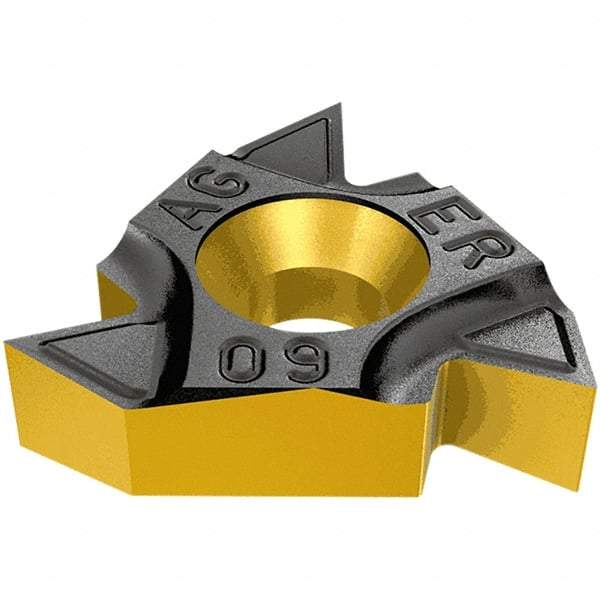

Iscar - 22ER External Right Hand 5 UN Laydown Threading Insert - Grade IC50M, Uncoated Coated Carbide, 12.7mm Inscribed Circle
Item #: 30731160
Brand: Iscar
Model #: 5900049
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Material | Carbide |
| Insert Style | 22ER |
| Insert Hand | Right Hand |
| Thread Type | External |
| Thread Standard | UN |
| Manufacturer's Grade | IC50M |
| Threads Per Inch | 5 |
| Inscribed Circle (mm) | 12.70 |
| Inscribed Circle (Inch) | 1/2 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Thickness (Decimal Inch) | 0.1880 |
| Coating | Uncoated |
| Corner Radius (mm) | 0.66 |
| Corner Radius (Decimal Inch) | 0.0260 |
| Number of Teeth Per Side | 1 |
