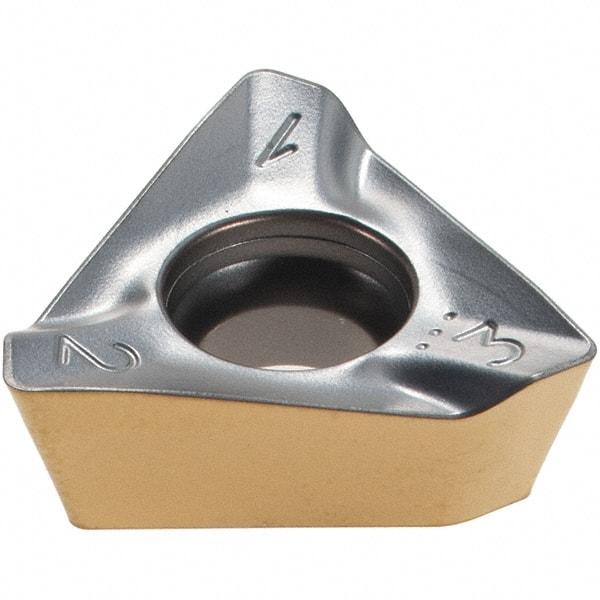

Iscar - HM390 TDKT1505 PDR Grade IC380 Carbide Milling Insert - TiCN/TiN Finish, 0.23" Thick, 0.449" Inscribed Circle, 0.79mm Corner Radius
Item #: 30731095
Brand: Iscar
Model #: 5667744
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | HM390 TDKT |
| Insert Size | 1505 |
| Material | Carbide |
| Manufacturer's Grade | IC380 |
| Coating | TiCN/TiN |
| Length (Decimal Inch) | 0.6570 |
| Inscribed Circle (Decimal Inch) | 0.4490 |
| Thickness (Decimal Inch) | 0.2300 |
| Corner Radius (Decimal Inch) | 0.0310 |
| Corner Radius (mm) | 0.79 |
| Relief Angle | 15.000 |
| Coating Process | PVD |
| Included Angle | 60 |
| Shape | Triangle |
| Chipbreaker | PDR |
| ISO Number | HM390 TDKT 1505PDR |
