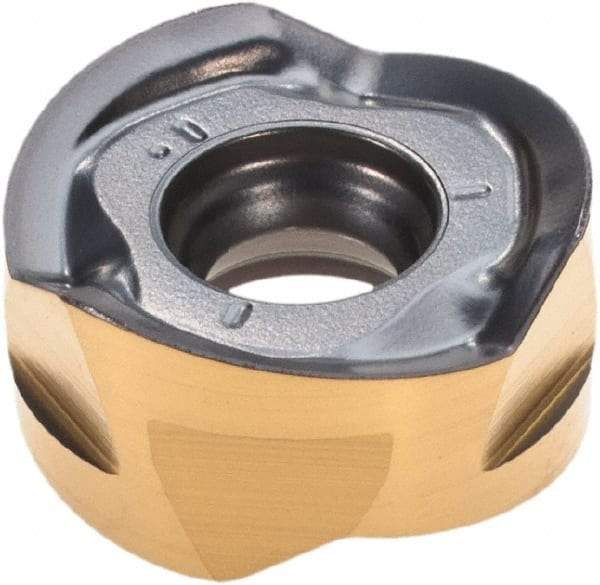

Iscar - H606 RXCU1206 AXT Grade IC808 Carbide Milling Insert - TiAlN/AlTiN/TiN Finish, 0.232" Thick, 0.48" Inscribed Circle, 5.99mm Corner Radius
Item #: 30730147
Brand: Iscar
Model #: 5606918
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | H606 RXCU |
| Insert Size | 1206 |
| Material | Carbide |
| Material Grade | Fine Grain |
| Manufacturer's Grade | IC808 |
| Coating | TiAlN/AlTiN/TiN |
| Inscribed Circle (Decimal Inch) | 0.4800 |
| Thickness (Decimal Inch) | 0.2320 |
| Corner Radius (Decimal Inch) | 0.2360 |
| Corner Radius (mm) | 5.99 |
| Coating Process | PVD |
| Shape | Round |
| Chipbreaker | AXT |
| ISO Number | H606 RXCU 1206-AXT |
