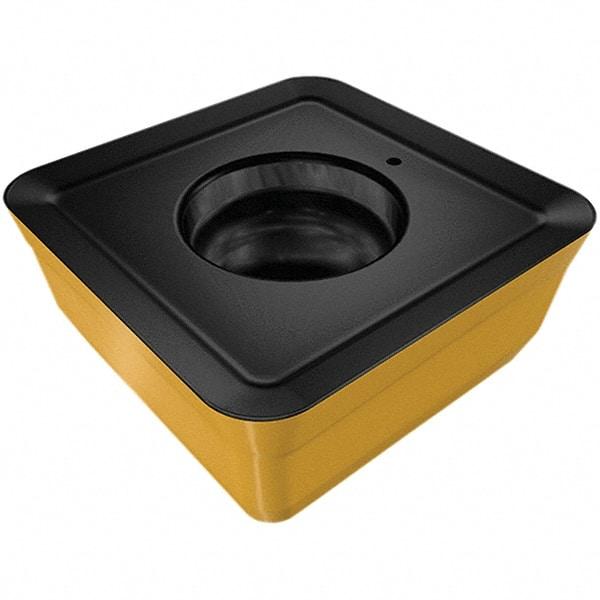

Iscar - FFQ4 SOMT120516 HP Grade IC808 Carbide Milling Insert - TiAlN/AlTiN/TiN Finish, 5.2mm Thick, 1/16" Corner Radius
Item #: 30584650
Brand: Iscar
Model #: 3311928
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | FFQ4 SOMT |
| Insert Size | 120516 |
| Material | Carbide |
| Material Grade | Fine Grain |
| Manufacturer's Grade | IC808 |
| Coating | TiAlN/AlTiN/TiN |
| Length (mm) | 12.70 |
| Length (Decimal Inch) | 0.5000 |
| Thickness (mm) | 5.20 |
| Thickness (Decimal Inch) | 0.2050 |
| Corner Radius (Inch) | 1/16 |
| Corner Radius (Decimal Inch) | 0.0630 |
| Corner Radius (mm) | 1.60 |
| Relief Angle | 25.000 |
| Coating Process | PVD |
| Shape | Square |
| Chipbreaker | HP |
| Manufacturers Catalog Number | FFQ4 SOMT 120516HP |
| ISO Number | FFQ4 SOMT 120516HP |
| ANSI Number | FFQ4 SOMT 120516HP |
