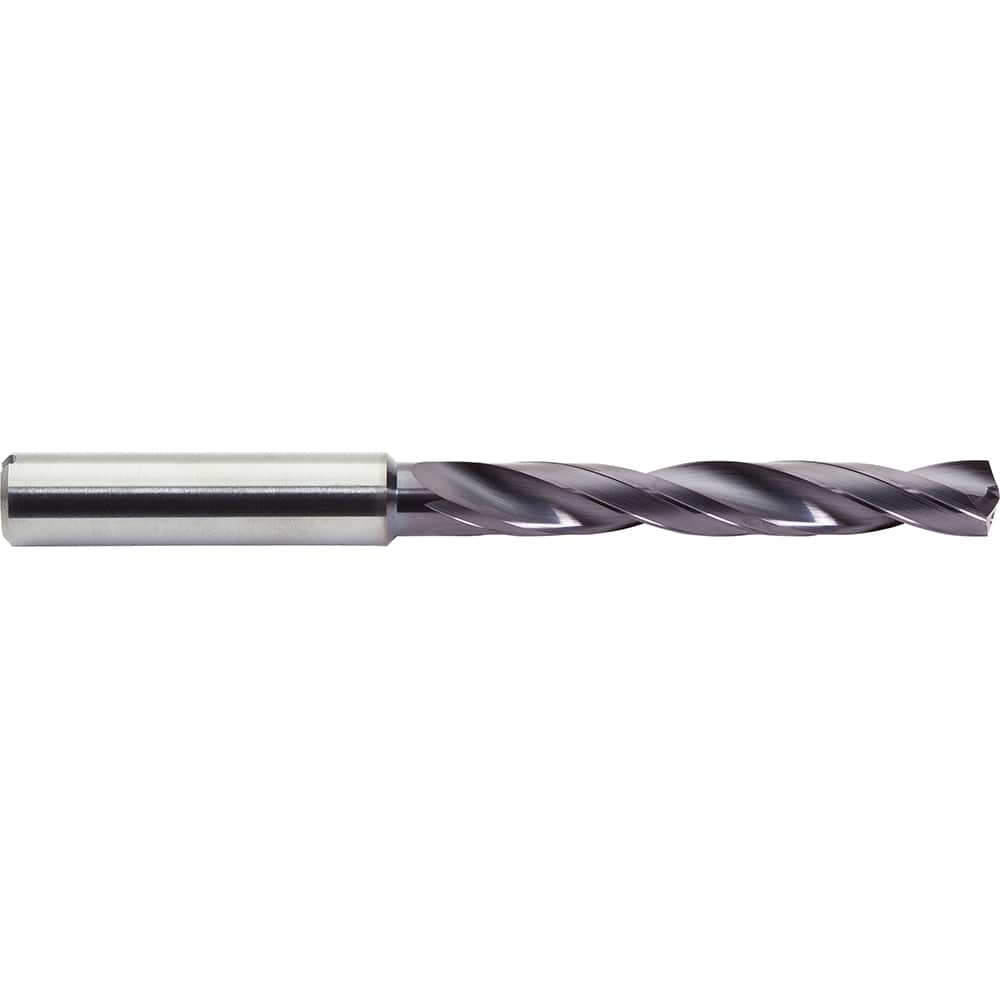

Jobber Length Drill Bit: 0.7283″ Dia, 142 °, Solid Carbide ALtima Plus Finish, 6.0236″ OAL, Right Hand Cut, Helical Flute, Straight-Cylindrical Shank
Item #: 28483774
Brand: M.A. Ford?
Model #: CXDCR 1850AP
Product Specifications
| Drill Bit Size (Decimal Inch) | 0.7283 |
| Drill Bit Size (mm) | 18.50 |
| Drill Bit Material | Solid Carbide |
| Cutting Direction | Right Hand |
| Drill Bit Finish/Coating | ALtima? Plus |
| Drill Point Angle (Degrees) | 142 |
| Spiral Type | Right Hand |
| Flute Type | Helical |
| Coolant Through | Yes |
| Shank Type | Straight-Cylindrical |
| Number of Flutes | 2 |
| Shank Diameter (Decimal Inch) | 0.7874 |
| Overall Length (mm) | 153.00 |
| Overall Length (Decimal Inch) | 6.0236 |
| Flute Length (mm) | 101.00 |
| Flute Length (Decimal Inch) | 3.9764 |
| Flute By Diameter Ratio | 5xD |
| Shank Diameter (mm) | 20.00 |
| Specification Number | DIN 6537L |
| Double Margin | Yes |
| Drill Bit Size Range (Decimal Inch) | 0.6500+ |
| Drill Bit Size Range (mm) | 15.00 |
| Specification Designation | DIN |
