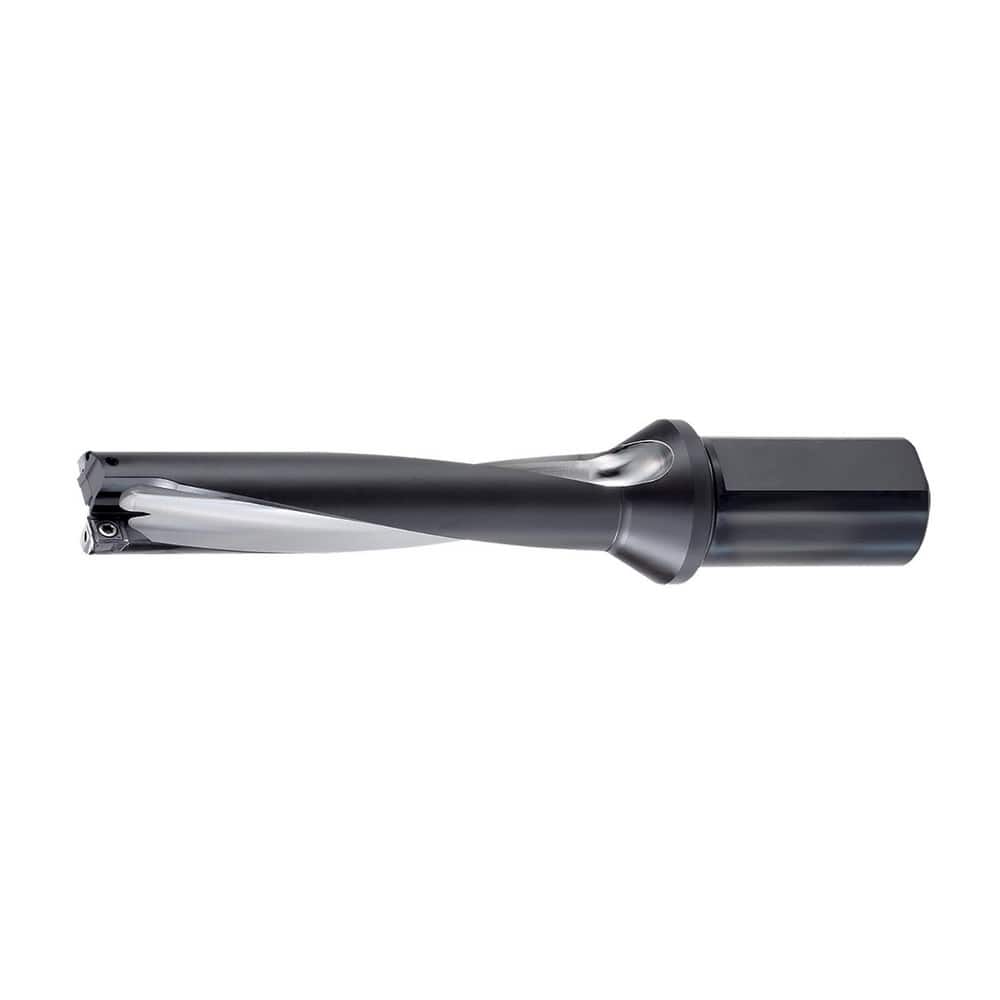

Indexable Insert Drills; Drill Style: P2D; Maximum Drill Diameter (Inch): 9/16; Maximum Drill Diameter (Decimal Inch): 0.5625; Maximum Drill Depth (Inch): 1-1/8; Maximum Drill Depth (Decimal Inch): 1.1250; Shank Type: Flatted; Shank Diameter (Inch): 3/4;
Item #: 26308940
Brand: OSG
Model #: 52502068
Product Specifications
| Drill Style | P2D |
| Maximum Drill Diameter (Inch) | 9/16 |
| Maximum Drill Diameter (Decimal Inch) | 0.5625 |
| Maximum Drill Depth (Inch) | 1-1/8 |
| Maximum Drill Depth (Decimal Inch) | 1.1250 |
| Shank Type | Flatted |
| Shank Diameter (Inch) | 3/4 |
| Shank Diameter (Decimal Inch) | 0.7500 |
| Number of Drill Inserts | 2 |
| Drill Diameter Range (Decimal Inch) | 0.0000 to 0.7500 |
| Cutting Direction | Right Hand |
| Maximum Drill Depth Range (Decimal Inch) | 1.0000 to 2.0000 |
| Tool Material | Steel |
| Compatible Insert Style | XCMT |
| Compatible Insert Size Code | 03 |
| Drill Depth by Diameter Ratio | 2xD |
| Coolant Entry Style Code | 1-Axial Concentric Entry |
| Overall Length (Decimal Inch) | 4.0000 |
| Overall Length (mm) | 4.00 |
| Overall Length (Inch) | 4 |
| Series | 52502 |
| Shank Length (Decimal Inch) | 1.9690 |
| Coolant Through | Yes |
