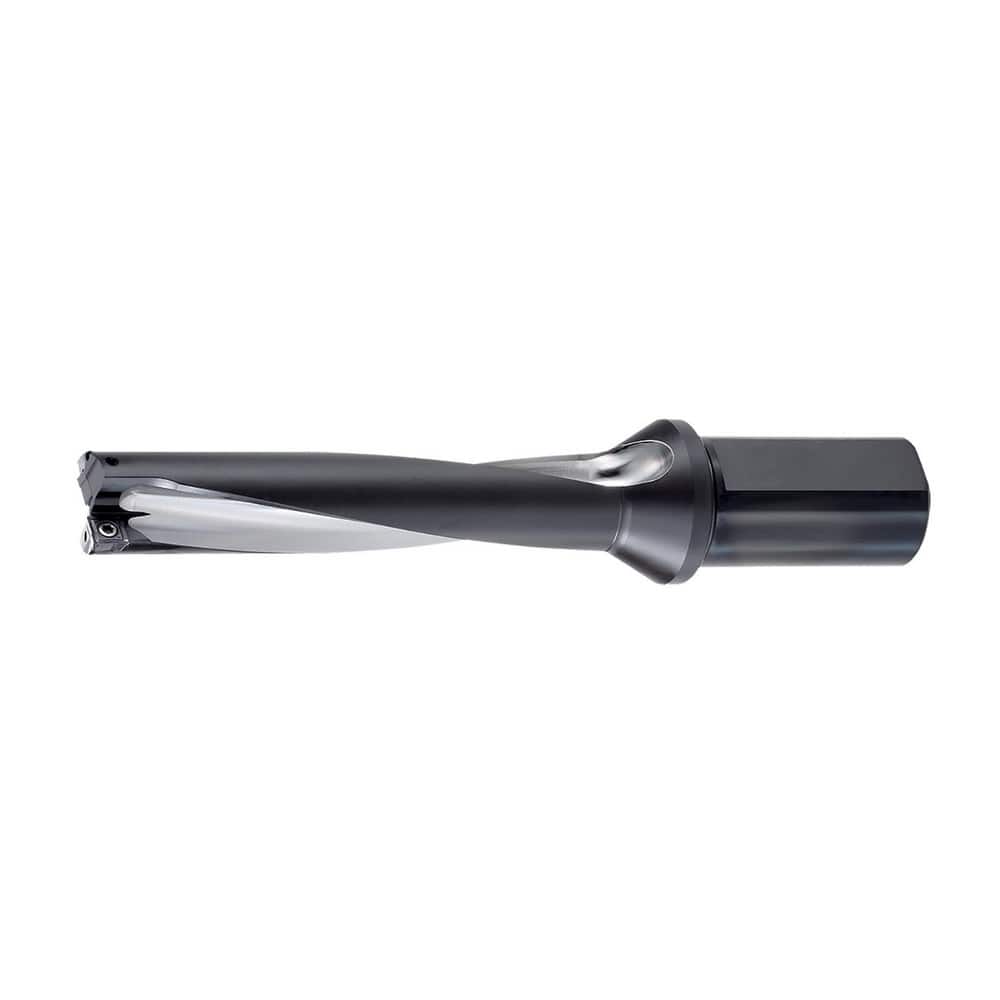

Indexable Insert Drills; Drill Style: P3D; Maximum Drill Diameter (Decimal Inch): 0.9844; Maximum Drill Depth (Decimal Inch): 2.9530; Shank Type: Flatted; Shank Diameter (Inch): 1-1/4; Shank Diameter (Decimal Inch): 1.2500; Number of Drill Inserts: 2
Item #: 26305607
Brand: OSG
Model #: 52503044
Product Specifications
| Drill Style | P3D |
| Maximum Drill Diameter (Decimal Inch) | 0.9844 |
| Maximum Drill Depth (Decimal Inch) | 2.9530 |
| Shank Type | Flatted |
| Shank Diameter (Inch) | 1-1/4 |
| Shank Diameter (Decimal Inch) | 1.2500 |
| Number of Drill Inserts | 2 |
| Drill Diameter Range (Decimal Inch) | 0.7500 to 1.0000 |
| Cutting Direction | Right Hand |
| Maximum Drill Depth Range (Decimal Inch) | 2.0000 to 3.0000 |
| Tool Material | Steel |
| Compatible Insert Style | XCMT |
| Compatible Insert Size Code | 08 |
| Drill Depth by Diameter Ratio | 3xD |
| Coolant Entry Style Code | 1-Axial Concentric Entry |
| Overall Length (Decimal Inch) | 6.2200 |
| Overall Length (mm) | 6.22 |
| Series | 52503 |
| Shank Length (Decimal Inch) | 2.3620 |
| Coolant Through | Yes |
