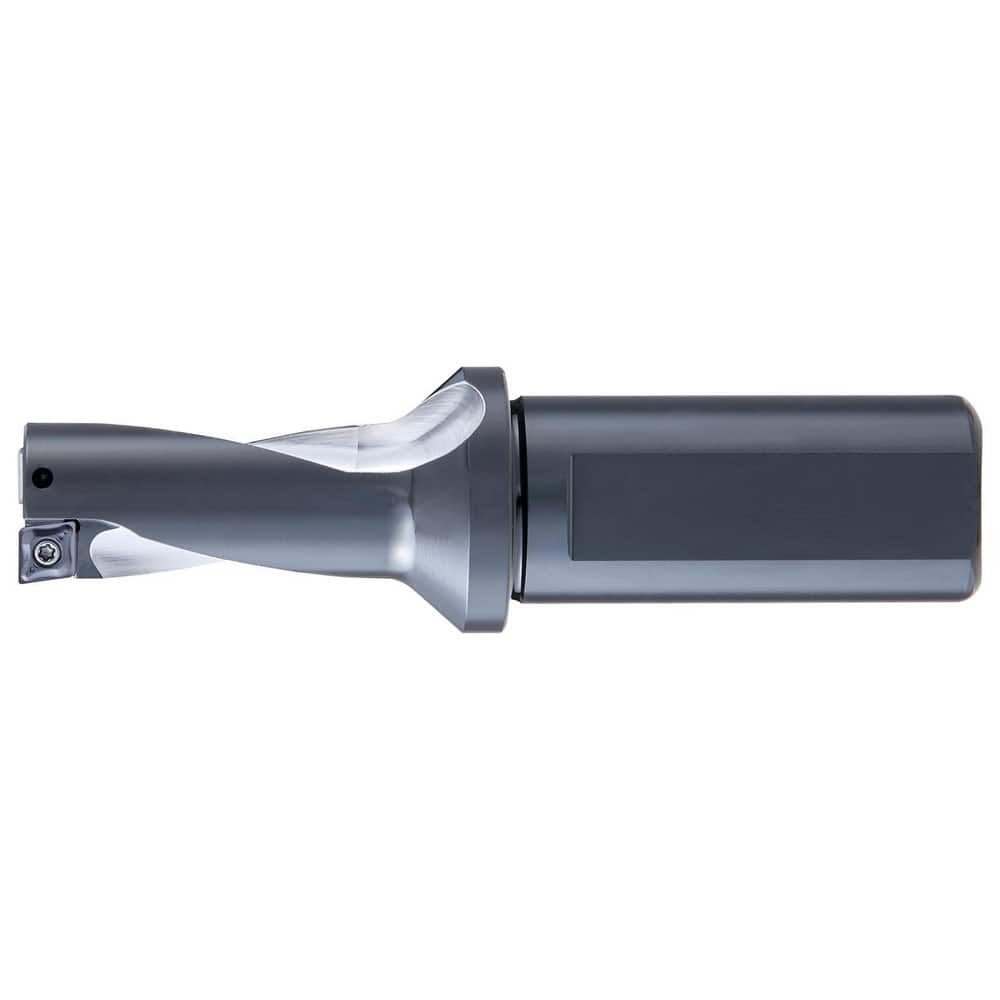

Indexable Insert Drills; Drill Style: PDZ; Maximum Drill Diameter (Inch): 13/16; Maximum Drill Diameter (Decimal Inch): 0.8125; Maximum Drill Depth (Inch): 1-5/8; Maximum Drill Depth (Decimal Inch): 1.6250; Shank Type: Flatted; Shank Diameter (Inch): 1; S
Item #: 26304832
Brand: OSG
Model #: 52513004
Product Specifications
| Drill Style | PDZ |
| Maximum Drill Diameter (Inch) | 13/16 |
| Maximum Drill Diameter (Decimal Inch) | 0.8125 |
| Maximum Drill Depth (Inch) | 1-5/8 |
| Maximum Drill Depth (Decimal Inch) | 1.6250 |
| Shank Type | Flatted |
| Shank Diameter (Inch) | 1 |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Number of Drill Inserts | 2 |
| Drill Diameter Range (Decimal Inch) | 0.7500 to 1.0000 |
| Cutting Direction | Right Hand |
| Maximum Drill Depth Range (Decimal Inch) | 1.0000 to 2.0000 |
| Tool Material | Steel |
| Compatible Insert Style | ZPNT |
| Compatible Insert Size Code | 06 |
| Drill Depth by Diameter Ratio | 2xD |
| Coolant Entry Style Code | 1-Axial Concentric Entry |
| Overall Length (Decimal Inch) | 4.5400 |
| Overall Length (mm) | 4.54 |
| Series | 52513 |
| Shank Length (Decimal Inch) | 2.2050 |
| Coolant Through | Yes |
