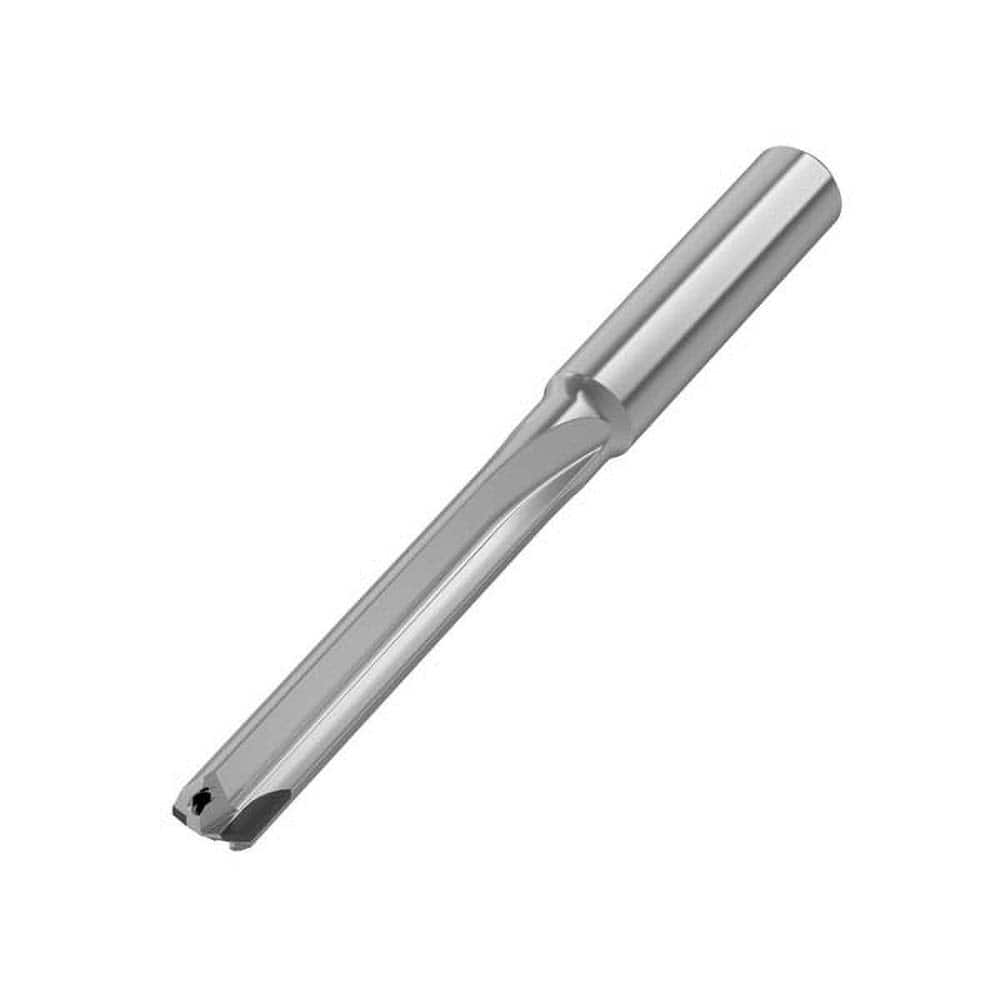

Jobber Length Drill Bit: 0.4134″ Dia, 140 °, Solid Carbide Bright/Uncoated, 4.6654″ OAL, Right Hand Cut, Straight Flute, Straight-Cylindrical Shank
Item #: 15660269
Brand: Kennametal
Model #: 6761177
Product Specifications
| Drill Bit Size (Decimal Inch) | 0.4134 |
| Drill Bit Size (mm) | 10.50 |
| Drill Bit Material | Solid Carbide |
| Cutting Direction | Right Hand |
| Drill Bit Finish/Coating | Uncoated |
| Drill Point Angle (Degrees) | 140 |
| Flute Type | Straight |
| Coolant Through | Yes |
| Shank Type | Straight-Cylindrical |
| Number of Flutes | 2 |
| Overall Length (Decimal Inch) | 4.6654 |
| Flute Length (mm) | 71.00 |
| Flute By Diameter Ratio | 5xD |
| Shank Diameter (mm) | 12.00 |
| Maximum Drilling Depth (mm) | 56.00 |
| Shank Length (mm) | 45.00 |
| Drill Point Length (mm) | 1.78 |
| Drill Bit Grade | KD1415 |
| Drill Bit Size Range (Decimal Inch) | 0.4000 - 0.5000 |
| Drill Bit Size Range (mm) | 10.00 - 12.50 |
