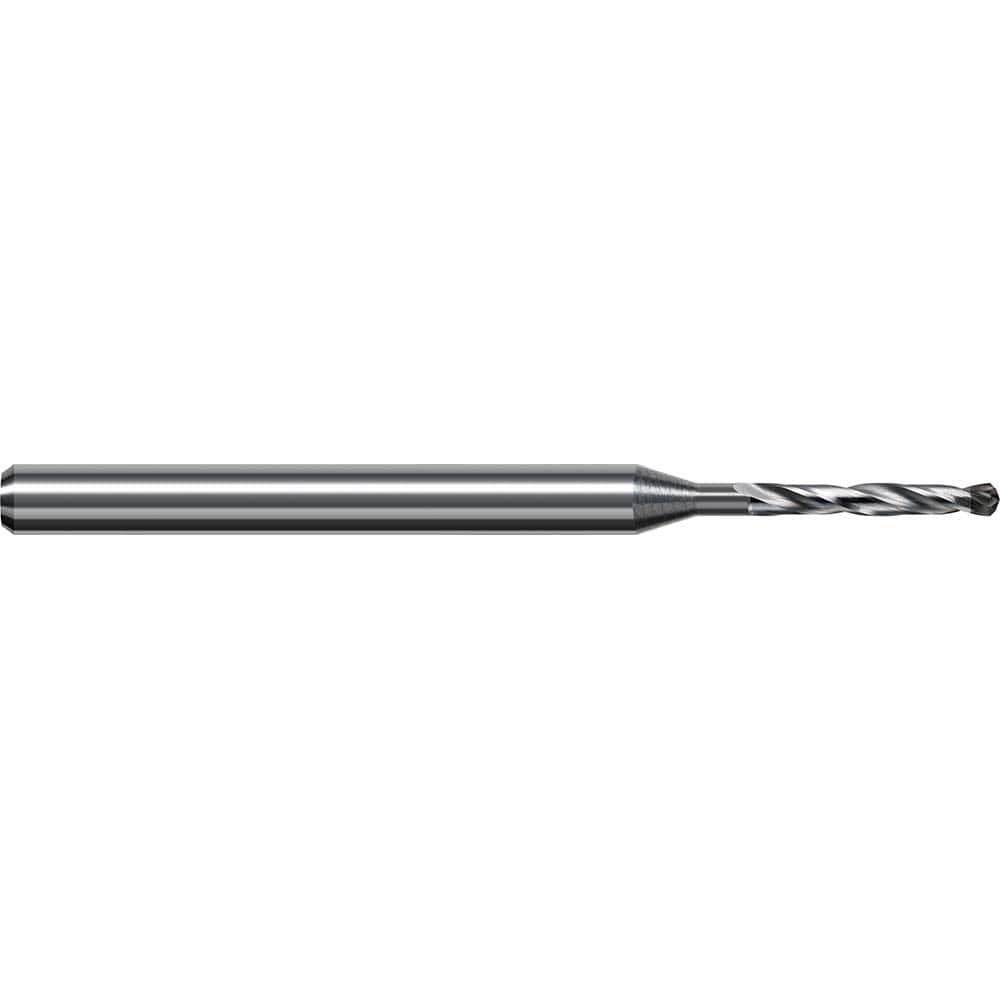

Jobber Length Drill Bit: 0.165″ Dia, 130 °, Brazed Solid Carbide Polycrystaline Diamond Finish, Right Hand Cut, Spiral Flute, Straight-Cylindrical Shank
Item #: 13899125
Brand: Harvey Tool
Model #: BCF1650
Product Specifications
| Drill Bit Size (Decimal Inch) | 0.1650 |
| Drill Bit Size (mm) | 4.19 |
| Drill Bit Material | Brazed Solid Carbide |
| Cutting Direction | Right Hand |
| Drill Bit Finish/Coating | Polycrystaline Diamond |
| Drill Point Angle (Degrees) | 130 |
| Flute Type | Spiral |
| Coolant Through | No |
| Shank Type | Straight-Cylindrical |
| Number of Flutes | 2 |
| Overall Length (mm) | 75.00 |
| Flute Length (mm) | 28.00 |
| Flute Length (Decimal Inch) | 1.1024 |
| Flute By Diameter Ratio | 5xD |
| Shank Diameter (mm) | 6.00 |
| Drill Bit Diameter Tolerance | h6 |
| Drill Bit Size Range (Decimal Inch) | 0.1500 - 0.2000 |
