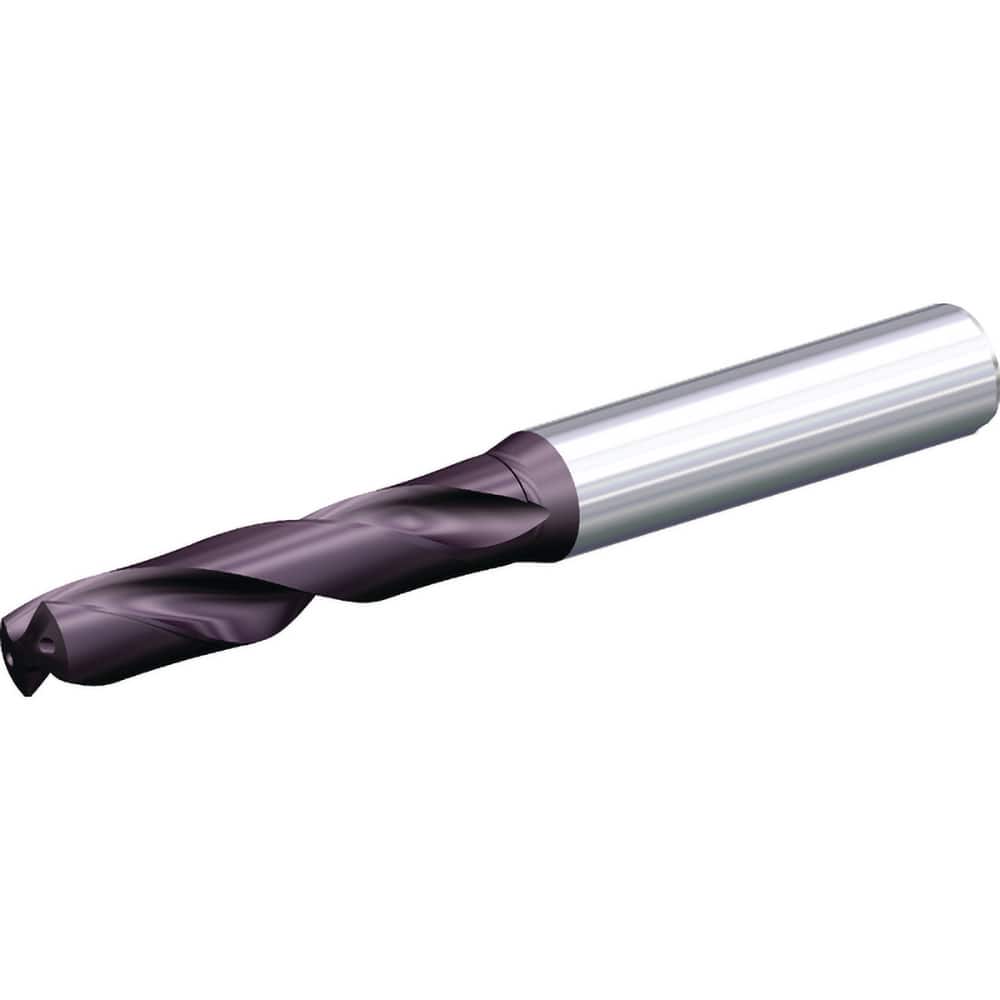

Jobber Length Drill Bit: 0.5774″ Dia, 140 °, Solid Carbide Bright/Uncoated, 5.2362″ OAL, Right Hand Cut, Helical Flute, Straight-Cylindrical Shank, Series B211
Item #: 13211248
Brand: Kennametal
Model #: 6351374
Product Specifications
| Drill Bit Size (Decimal Inch) | 0.5774 |
| Drill Bit Size (mm) | 14.66 |
| Drill Bit Material | Solid Carbide |
| Cutting Direction | Right Hand |
| Drill Point Angle (Degrees) | 140 |
| Flute Type | Helical |
| Coolant Through | Yes |
| Shank Type | Straight-Cylindrical |
| Number of Flutes | 2 |
| Shank Diameter (Decimal Inch) | 0.6250 |
| Overall Length (mm) | 133.00 |
| Overall Length (Decimal Inch) | 5.2362 |
| Flute Length (mm) | 82.00 |
| Flute Length (Decimal Inch) | 3.2283 |
| Series | B211 |
| Flute Length x Diamter Ratio | 4xD |
| Flute By Diameter Ratio | 4xD |
| Shank Diameter (mm) | 15.87 |
| Maximum Drilling Depth (Decimal Inch) | 2.5394 |
| Maximum Drilling Depth (mm) | 64.50 |
| Shank Length (mm) | 48.50 |
| Shank Length (Decimal Inch) | 1.9094 |
| Drill Point Length (mm) | 2.17 |
| Drill Point Length (Decimal Inch) | 0.0854 |
