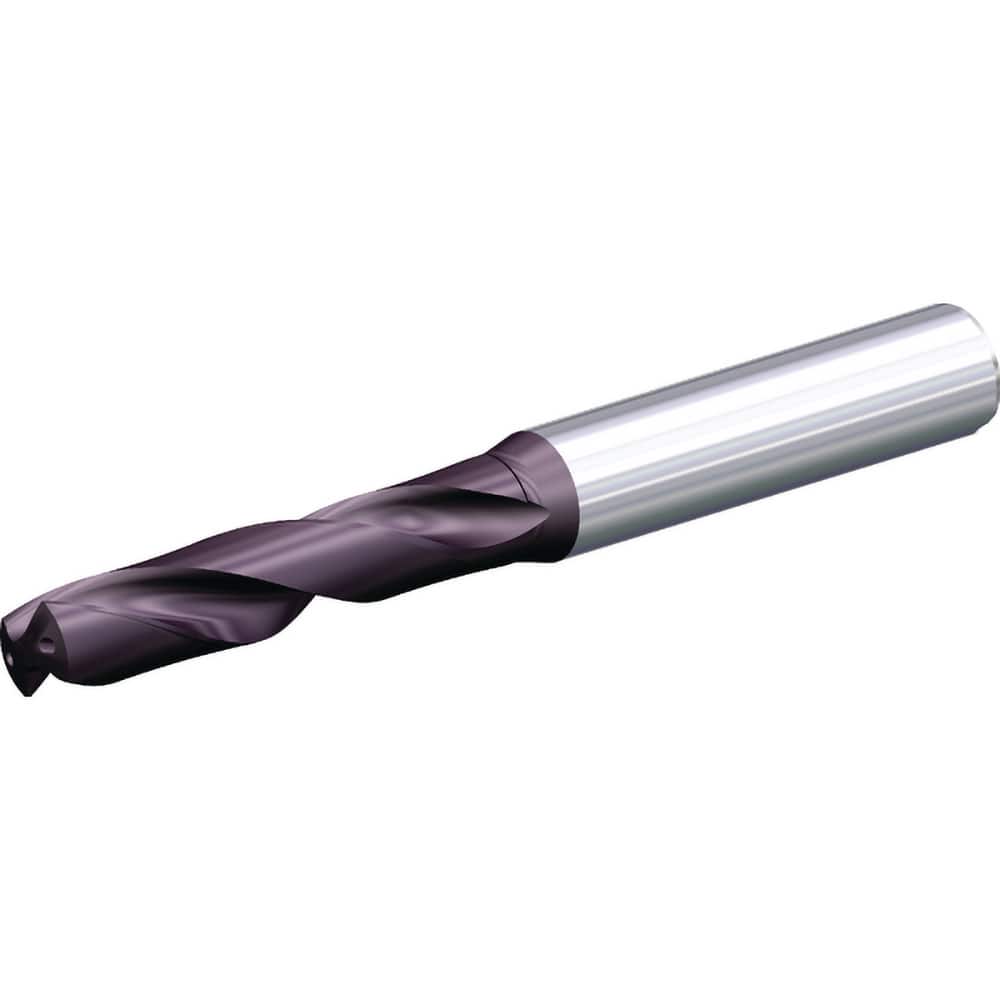

Screw Machine Length Drill Bit: 140 °, Solid Carbide Coated, Right Hand Cut, Helical Flute, Straight-Cylindrical Shank, Series B210
Item #: 13210422
Brand: Kennametal
Model #: 6393594
Product Specifications
| Drill Bit Size (Inch) | 11/16 |
| Drill Bit Size (mm) | 17.46 |
| Tool Material | Solid Carbide |
| Cutting Direction | Right Hand |
| Coating/Finish | Coated |
| Drill Point Angle | 140 |
| Flute Type | Helical |
| Coolant Through | Yes |
| Shank Type | Straight-Cylindrical |
| Number Of Flutes | 2 |
| Shank Diameter (Decimal Inch) | 0.7087 |
| Overall Length (mm) | 123.00 |
| Overall Length (Decimal Inch) | 4.8425 |
| Shank Diameter (mm) | 18.00 |
| Series | B210 |
| Maximum Drilling Depth (Decimal Inch) | 2.0079 |
| Maximum Drilling Depth (mm) | 51.00 |
| Shank Length (Decimal Inch) | 1.8898 |
| Shank Length (mm) | 48.00 |
| Drill Point Length (mm) | 2.58 |
| Drill Point Length (Decimal Inch) | 0.1016 |
| Flute By Diameter Ratio | 2.5xD |
| Flute Length (Decimal Inch) | 2.8740 |
| Flute Length (mm) | 73.00 |
| Drill Bit Size Range (Decimal Inch) | 0.6000+ |
