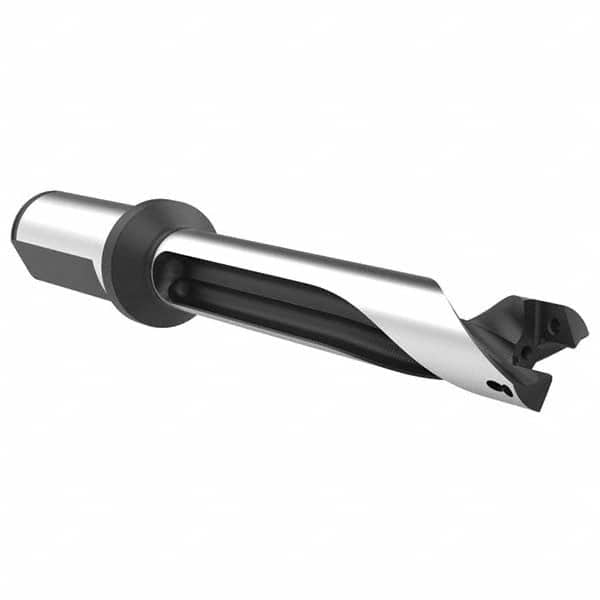

Indexable Spade Drill: 20 to 22 mm Dia, 110 mm Max Depth, Straight Flute 25 mm Shank Dia, Cylindrical Shank, 144.1 mm Body Length, 200.1 mm OAL, Through Coolant
Item #: 12329538
Brand: Allied Machine and Engineering
Model #: ST05200-25FM
Product Specifications
| Minimum Drill Diameter (mm) | 20.00 |
| Maximum Drill Diameter (mm) | 22.00 |
| Maximum Drill Depth (mm) | 110.00 |
| Shank Type | Cylindrical |
| Shank Diameter (mm) | 25.00 |
| Drill Depth by Diameter Ratio | 5xD |
| Tool Material | Steel |
| Overall Length (mm) | 200.10 |
| Flute Type | Straight |
| Body Length | 144.10 |
| Shank Length (mm) | 56.00 |
| Coolant Hole Thread Size | 1/8 |
| Coolant Hole Thread Type | NPT |
| Primary Workpiece Material | Steel |
| Primary Workpiece Material Code | P |
| Coolant Through | Yes |
